ASROCK H87 Pro4 Socket 1150 DDR3 ATX Motherboard Intel H87 Chipset
ASROCK H87 Pro4 Socket 1150 DDR3 ATX Motherboard Intel H87 Chipset
Couldn't load pickup availability
ASROCK H87 Pro4

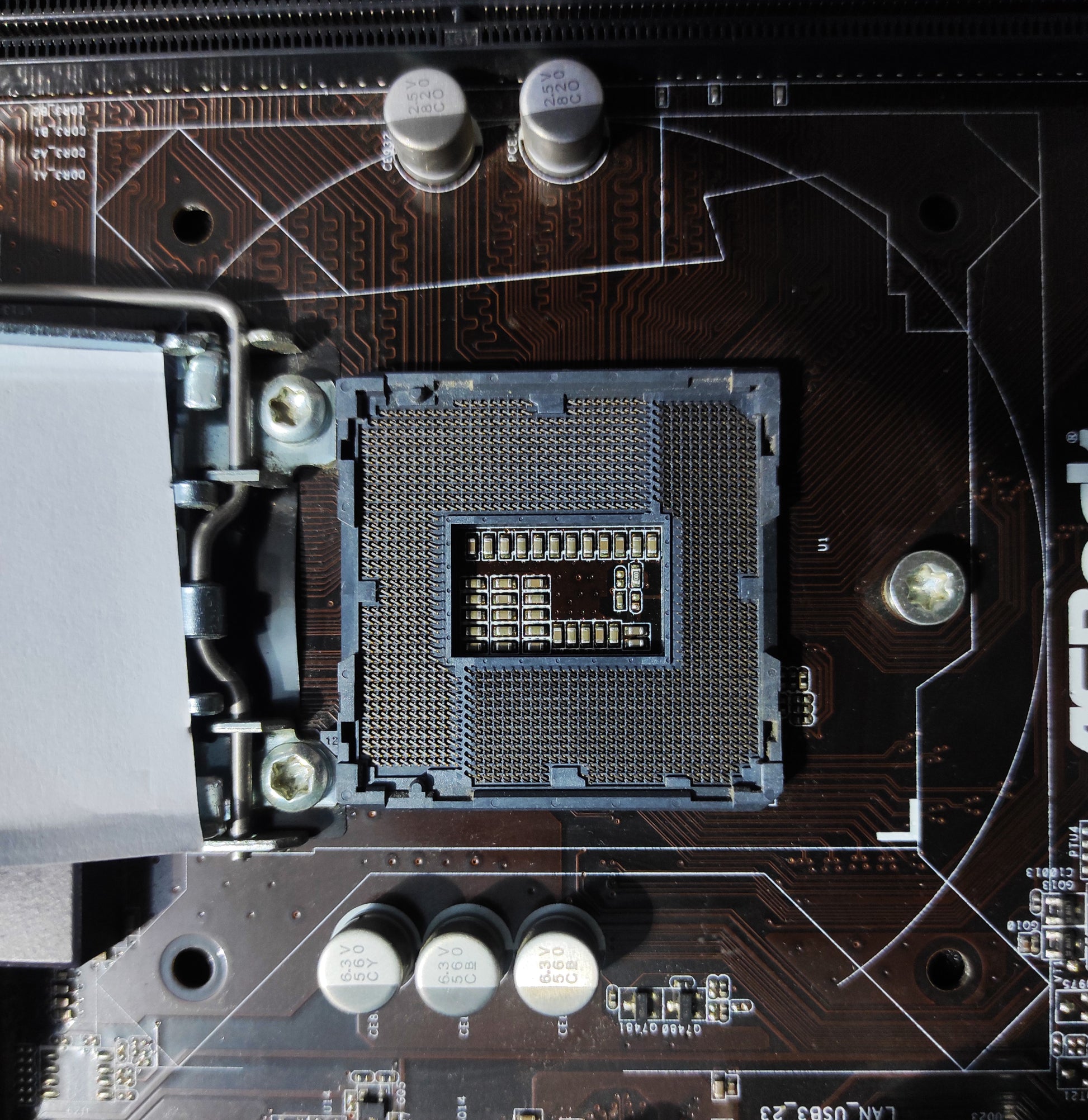

Socket 1150
DDR3 ATX Motherboard
Intel H87 Chipset
-
- Supports New 4thand 4thGeneration Intel®Xeon®/ Core™ i7 / i5 / i3 / Pentium®/ Celeron®Processors (Socket 1150)
- Digi Power Design
- 4 Power Phase Design
- Supports Intel®Turbo Boost 2.0 Technology -
Chipset- Intel®H87
- Supports Intel®Small Business Advantage 2.0 -
Memory- Dual Channel DDR3/DDR3L memory technology
- 4 x DDR3/DDR3L DIMM slots
- Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB*
- Supports Intel®Extreme Memory Profile (XMP) 1.3 / 1.2
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows®32-bit OS. For Windows®64-bit OS with 64-bit CPU, there is no such limitation. -
BIOS- 64Mb AMI UEFI Legal BIOS with Multilingual GUI support
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- CPU, DRAM, PCH 1.05V Voltage Multi-adjustment -
Graphics- Supports Intel®HD Graphics Built-in Visuals : Intel®Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel®InTru™ 3D, Intel®Clear Video HD Technology, Intel®Insider™, Intel®HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 512MB*
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports HDCP function with DVI-D and HDMI ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports
*The size of maximum shared memory may vary from different operating systems.
**Intel®HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
***Due to chipset limitation, the Blu-ray playback of Intel®HD Graphics is only supported under Windows®8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.
****Intel®InTru™ 3D is only supported under Windows®8 / 8 64-bit / 7 / 7 64-bit. -
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support -
LAN- Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel®I217V
- Supports Intel®Remote Wake Technology
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE -
Slots- 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)
- 3 x PCI Express 2.0 x1 slots
- 2 x PCI slots -
Storage- 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel®Rapid Storage Technology 12 and Intel®Smart Response Technology), NCQ, AHCI and Hot Plug
-
Connector- 1 x IR header
- 1 x COM Port header
- 1 x Power LED header
- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
- 2 x Chassis Fan connectors (2 x 4-pin)
- 1 x Power Fan connector (3-pin)
- 1 x 24 pin ATX power connector
- 1 x 8 pin 12V power connector
- 1 x Front panel audio connector
- 1 x SPDIF Out connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports) -

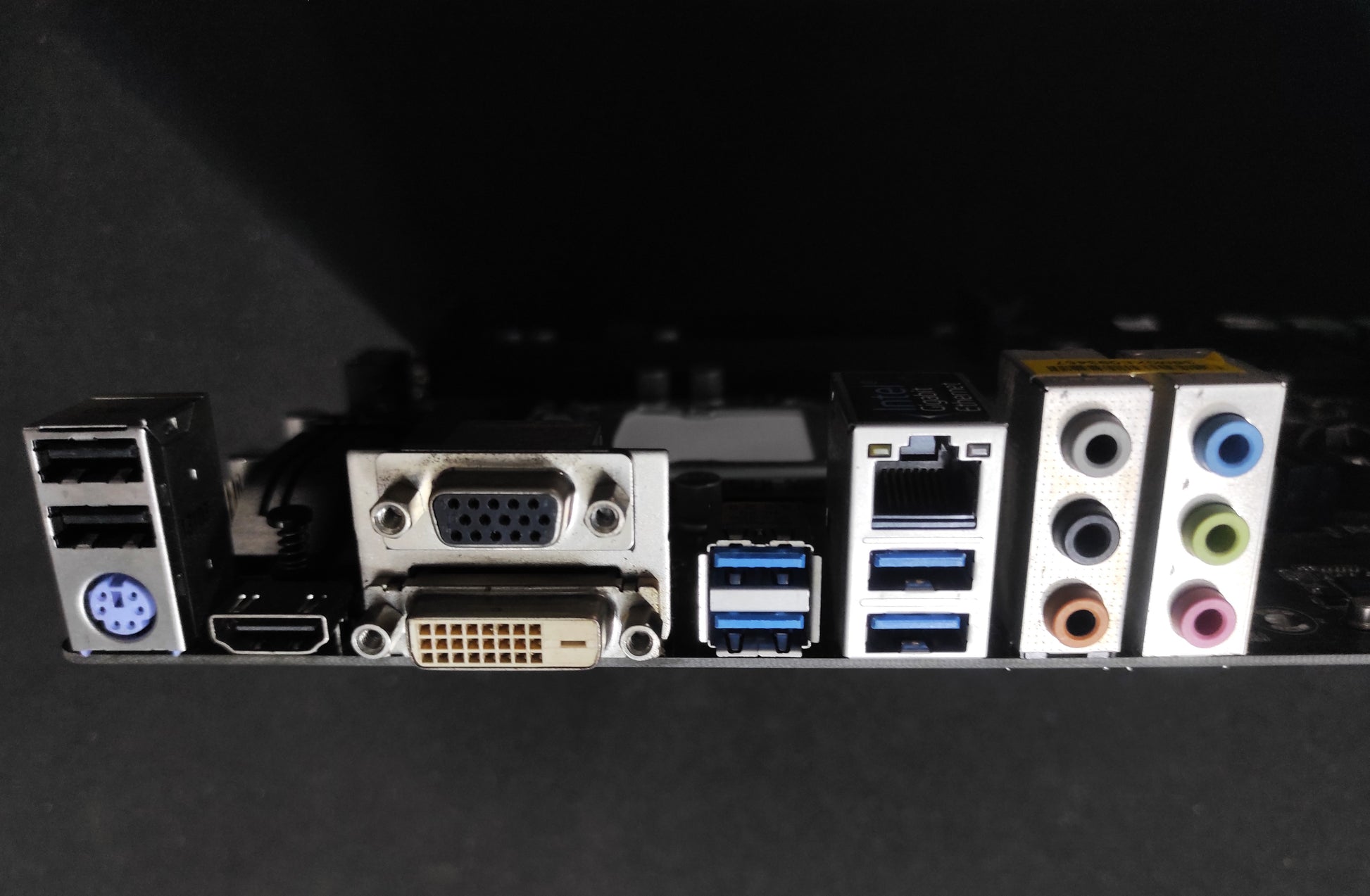

Rear Panel I/OI/O Panel
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports
- 4 x USB 3.1 Gen1 Ports
- 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone -
Unique Feature- ASRock APP Shop
- ASRock A-Tuning
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- ASRock On/Off Play Technology
- ASRock USB Key
- ASRock FAN-Tastic Tuning
- Hybrid Booster:
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Good Night LED -
Accessories- I/O Shield
-
Hardware Monitor- CPU, Chassis temperature sensing
- CPU, Chassis, Power Fan Tachometer
- CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU, Chassis Fan multi-speed control
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore -
Form Factor- ATX Form Factor
- All Solid Capacitor design -
OS- Microsoft Windows®10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
-
Certifications- FCC, CE
- ErP/EuP Ready (ErP/EuP ready power supply is required)
