ASRock N68-GS3 UCC Socket AM3 mATX AMD Motherboard nForce 630a GeForce 7025

ASRock N68-GS3 UCC Socket AM3 mATX AMD Motherboard nForce 630a GeForce 7025

€35,90 EUR
€35,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

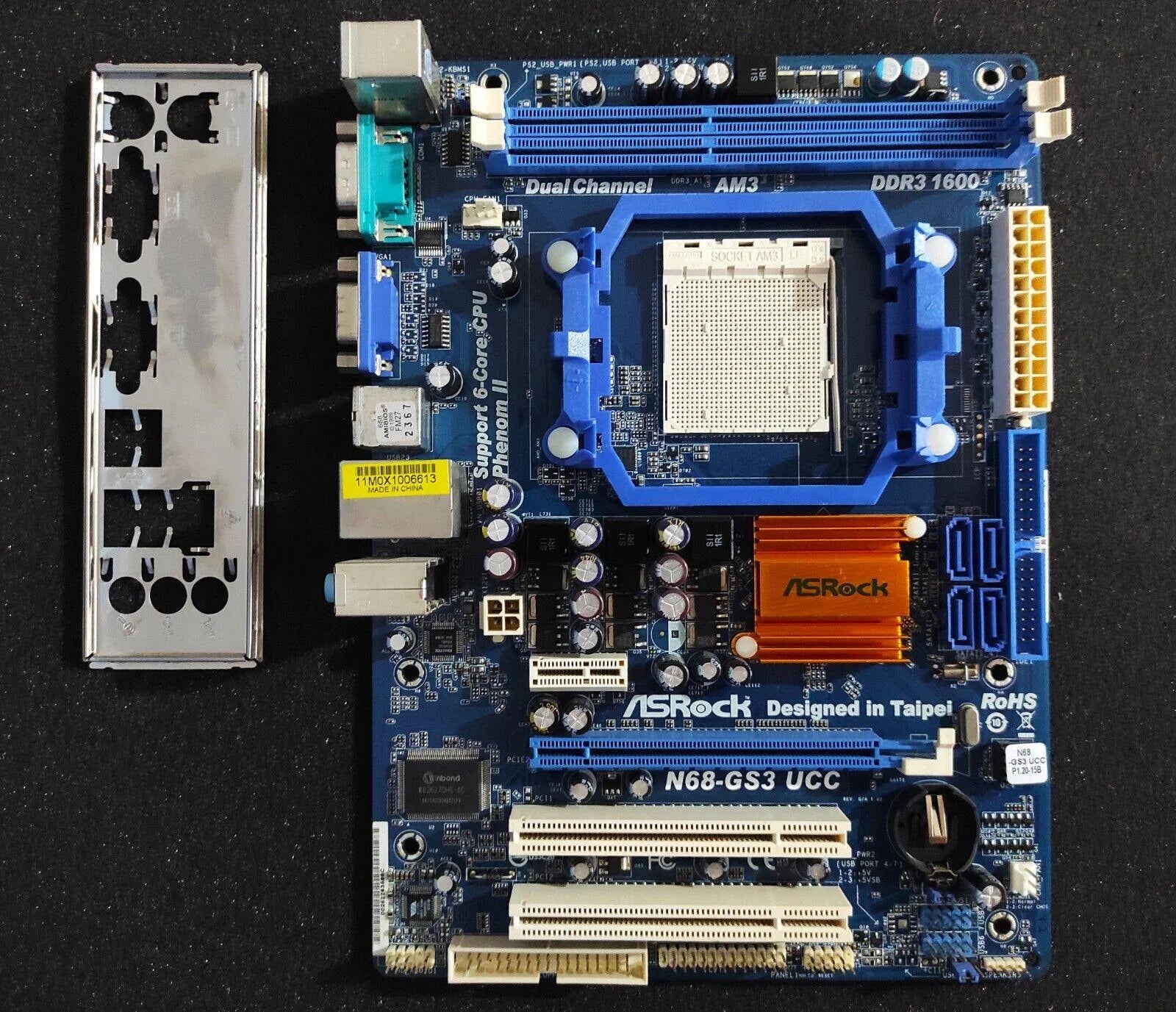

ASRock N68-GS3 UCC

Socket AM3 mATX AMD Motherboard

NVidia nForce 630a GeForce 7025 Chipset

Used motherboard, tested working and in excellent condition! I/O Shield included!
  • CPU
    - Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
    - 6-Core CPU Ready
    - Supports UCC feature (Unlock CPU Core)
    - Supports AMD's Cool 'n' Quiet Technology
    - FSB 1000MHz (2.0 GT/s)
    - Supports Untied Overclocking Technology
    - Supports Hyper-Transport Technology

    *For more information, please refer to the "CPU Support List".
  • Chipset
    - NVIDIA® GeForce 7025 / nForce 630a
  • Memory
    - Dual Channel DDR3 memory technology
    - 2 x DDR3 DIMM slots
    - Supports DDR3 1600/1333/1066/800 non-ECC, un-buffered memory
    - Max. capacity of system memory: 8GB*

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 4Mb AMI Legal BIOS
    - Supports "Plug and Play"
    - ACPI 1.1 Compliance Wake Up Events
    - Supports jumperfree
    - SMBIOS 2.3.1 Support
    - CPU, VCCM Voltage Multi-adjustment
  • Graphics
    - Integrated NVIDIA® GeForce 7025 graphics
    - DX9.0 VGA, Pixel Shader 3.0
    - Max. shared memory 256MB
    - Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz
  • Audio
    - 5.1 CH HD Audio (VIA® VT1705 Audio Codec)
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    - Giga PHY RTL8211CL
    - Supports Wake-On-LAN
    - Supports PXE
  • Slots
    - 1 x PCI Express x16 slot
    - 1 x PCI Express x1 slot
    - 2 x PCI slots
  • Connector
    - 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions
    - 1 x ATA133 IDE connector (supports 2 x IDE devices)
    - 1 x Floppy connector
    - 1 x Print Port header
    - CPU/Chassis FAN connector
    - 24 pin ATX power connector
    - 4 pin 12V power connector
    - Front panel audio connector
    - 2 x USB 2.0 headers (support 4 USB 2.0 ports)

    *This mainboard does not support RAID with HDDs of 3TB and above.

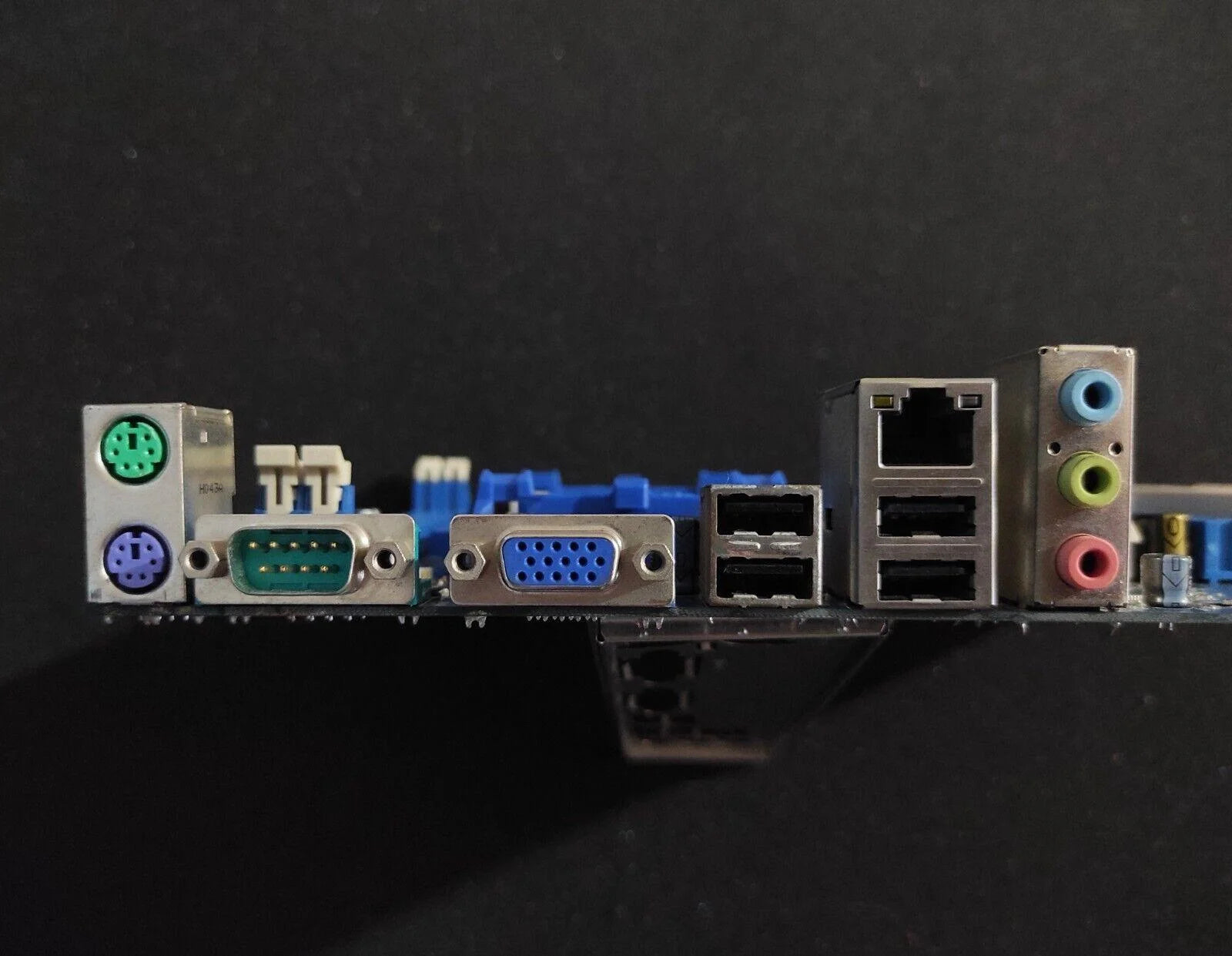

  • Rear Panel I/O
    I/O Panel
    - 1 x PS/2 Mouse Port
    - 1 x PS/2 Keyboard Port
    - 1 x Serial Port: COM1
    - 1 x VGA Port
    - 4 x Ready-to-Use USB 2.0 Ports
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jack: Line in / Front Speaker / Microphone
  • Unique Feature
    - ASRock OC Tuner
    - Intelligent Energy Saver
    - Instant Boot
    - ASRock Instant Flash
    - ASRock OC DNA
    - ASRock APP Charger
    - Hybrid Booster:
    - CPU Frequency Stepless Control
    - ASRock U-COP
    - Boot Failure Guard (B.F.G.)

  • Hardware Monitor
    - CPU Temperature Sensing
    - Chassis Temperature Sensing
    - CPU Fan Tachometer
    - Chassis Fan Tachometer
    - CPU Quiet Fan
    - Voltage Monitoring: +12V, +5V, +3.3V, Vcore
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 7.0-in, 24.4 cm x 17.8 cm
  • OS
    - Microsoft Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
  • Certifications
    - FCC, CE
