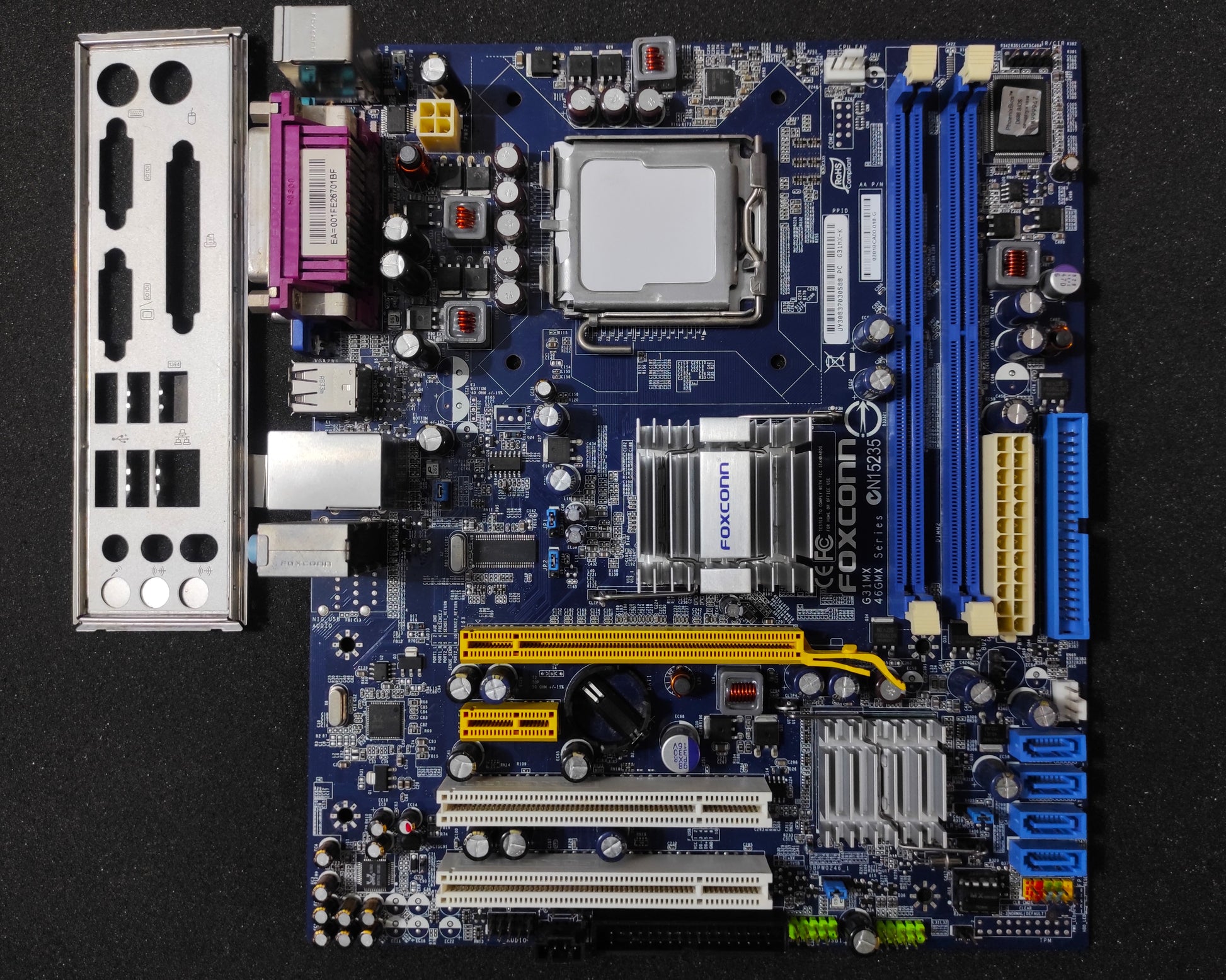

Foxconn G31MX-K 46GMX Socket 775 mATX Motherboard DDR2 PCIe x16 Intel G31 Chipset
Foxconn G31MX-K 46GMX Socket 775 mATX Motherboard DDR2 PCIe x16 Intel G31 Chipset
Couldn't load pickup availability
Foxconn G31MX-K 46GMX
Socket 775 mATX Motherboard
DDR2, PCIe x16
Intel G31 Chipset
General
|
Manufacturer |
Foxconn |
|
Form factor |
microATX |
CPU
|
Processor manufacturer |
Intel |
|

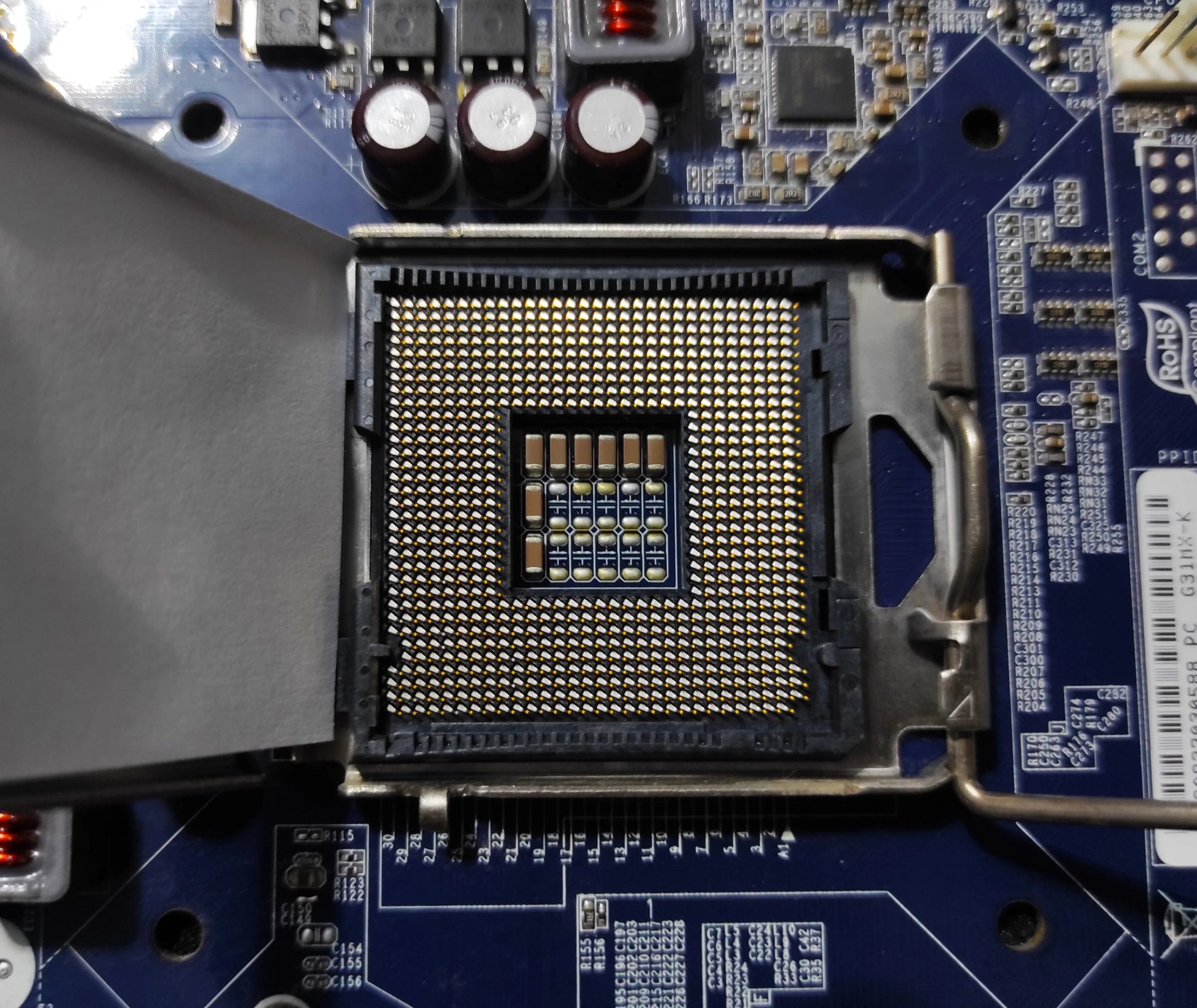

Socket |
LGA775 |
|
Socket count |
1 |
|
Presence of build-in CPU |
no |
|
Build-in CPU name |
- |
|
FSB maximum frequency |
1333 |
|
FSB minimum frequency |
800 |
|
Hyper-Threading support |
yes |
|
Multicore processor support |
yes |
|
CPU Support List |
Intel Core2 Quad/Core2 Duo/Core2 Extreme/Pentium Dual-Core/Pentium D/Pentium 4 Extreme/Pentium D/Pentium 4/Celeron |
Chipset
|
Chipset manufacturer |
Intel |
|
Chipset model |
Intel G31 |
|
Intel vPro support |
no |

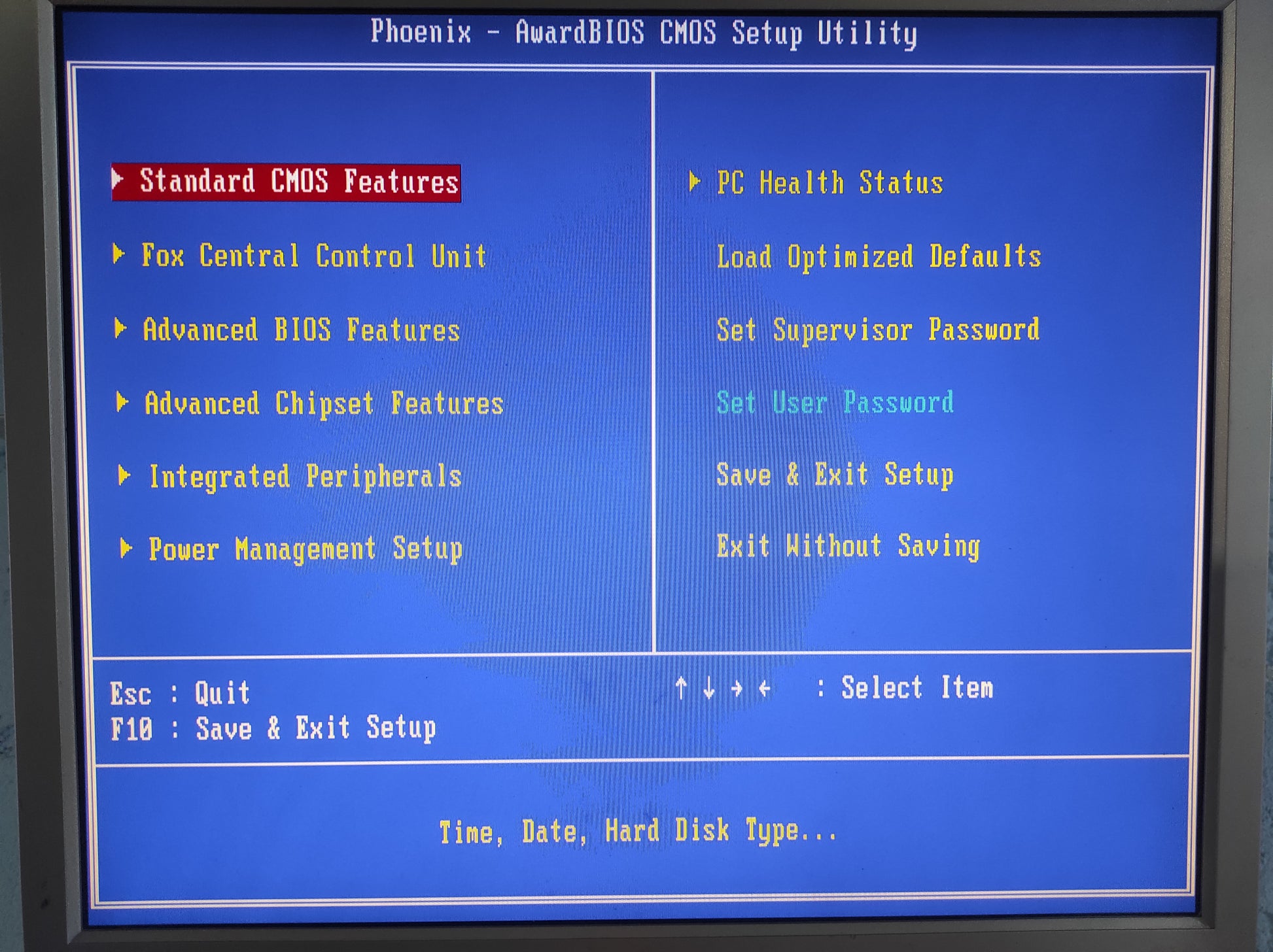

BIOS/EFI
|

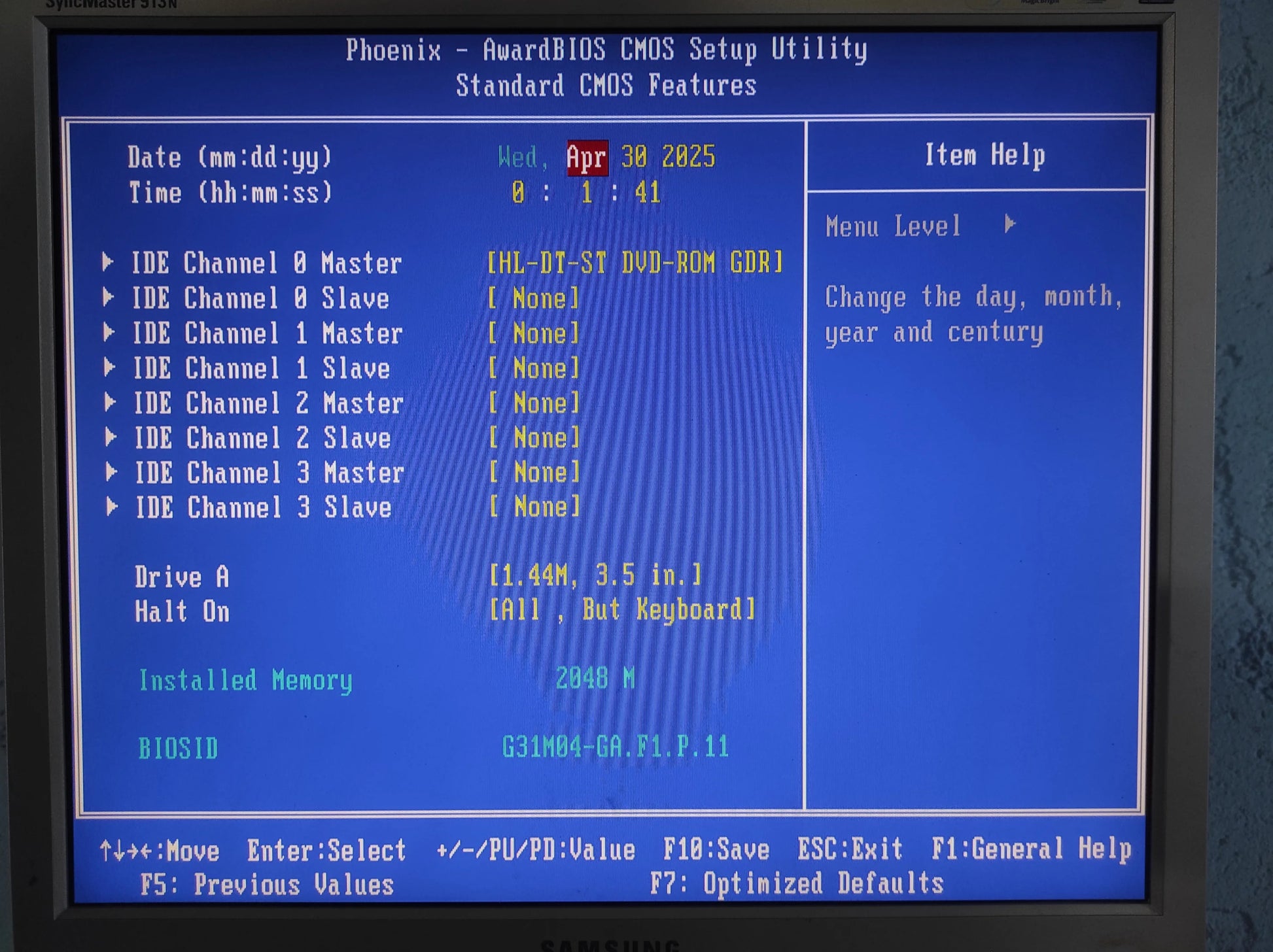

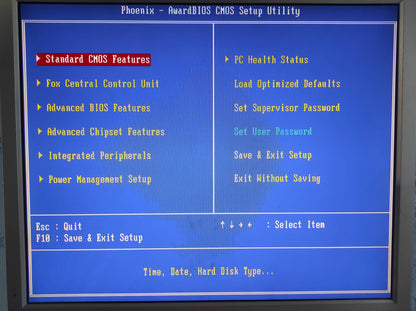

BIOS manufacturer |
Award |
|
BIOS recovery possibility |
no |
|
EFI (UEFI) support |
no |
RAM
|
RAM slot count |
2 |
|
RAM type |
DDR2 DIMM |
|
RAM maximum frequency, MHz |
800 |
|
RAM minimum frequency, MHz |
667 |
|
RAM Dual-channel mode support |
yes |
|
RAM Triple-channel mode support |
no |
|
RAM Quad-channel mode support |
no |
|
RAM max volume, Gb |
4 |
|
ECC support |
no |
|
ECC max volume, Gb |
0 |
|
Registered (buffered) memory support |
no |
PCI/Graphic card
|
AGP support |
no |
|
PCI-E x16 count |
1 |
|
SLI/Crossfire support |
no |
|
PCI Express 2.0 support |
no |
|
PCI Express 3.0 support |
no |
|
Dual-channel PCI Express mode |
not supported |
|
Triple-channel PCI Express mode |
not supported |
|
Quad-channel PCI Express mode |
not supported |
|
Seven-channel PCI Express mode |
not supported |
|
PCI-E x8 count |
0 |
|
PCI-E x4 count |
0 |
|
PCI-E x1 count |
1 |
|
PCI count |
2 |
|
PCI-X count |
0 |
|
PCI-x type |
- |
SATA
|
SATA controller presence |
yes |
|
SATA controller model |
not specified |
|
SATA 1.5 Gb/s count |
0 |
|
SATA 3.0 Gb/s count |
4 |
|
SATA 6.0 Gb/s count |
0 |
|
mSATA count |
0 |
|
SATA RAID mode |
no |
|
SATA count |
0 |
|
SATA M.2 count |
0 |
|
SATA M.2 type |
- |
IDE
|
IDE support |
yes |
|
IDE count |
1 |
|
IDE type |
UltraDMA 100 |
|
IDE RAID mode |
no |
Ethernet
|
Ethernet controller presence |
yes |
|
Ethernet speed |
1000 MBit/s |
|
Ethernet controller model |
Realtek RTL8111B |
Audio
|
Audio presence controller |
yes |
|
Audio controller type |
HDA |
|
Audio controller model |
Realtek ALC662 |
|
Audio scheme |
5.1 |
Video
|
Video controller presence |
yes |
|
Video controller model |
Intel GMA 3100 |

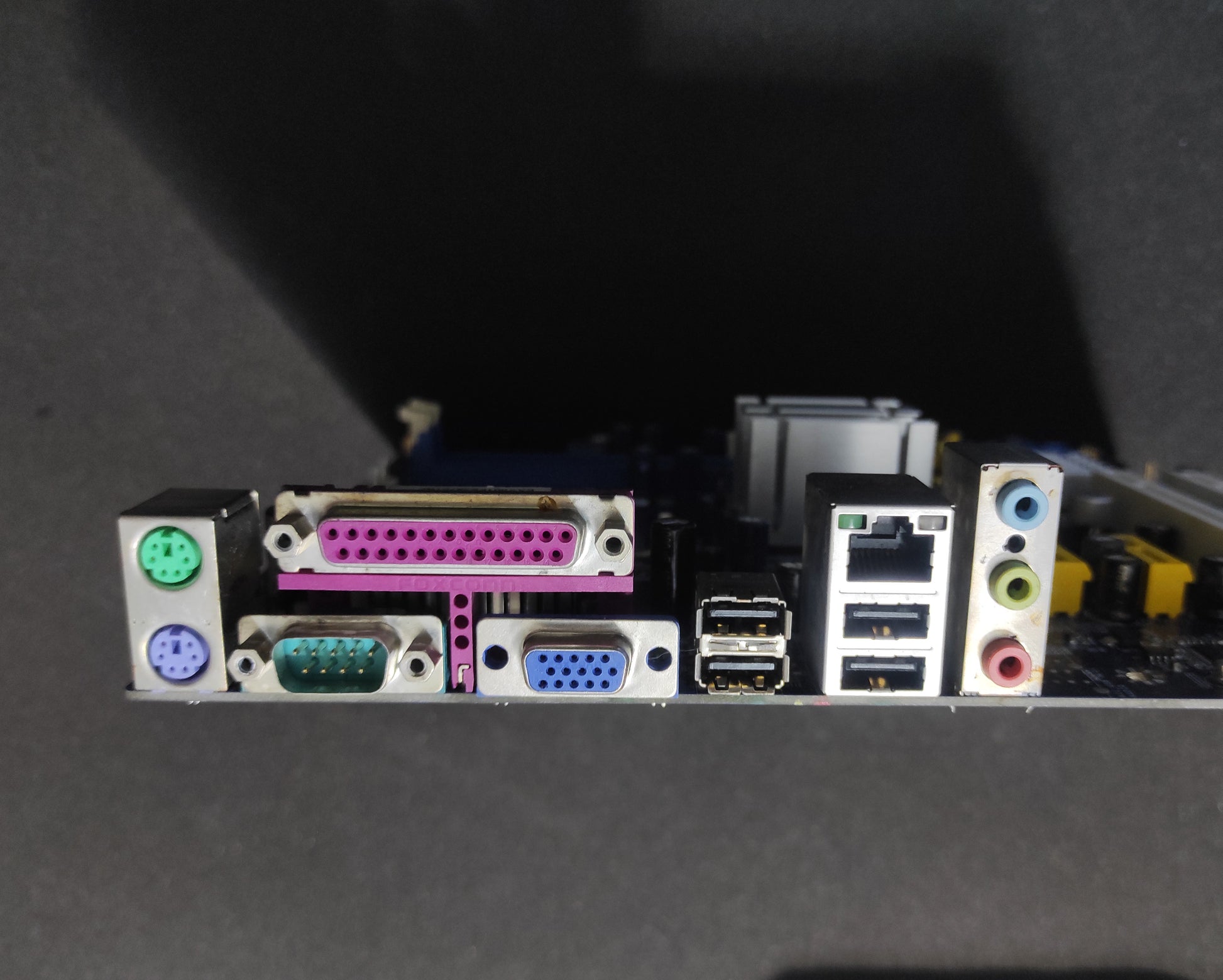

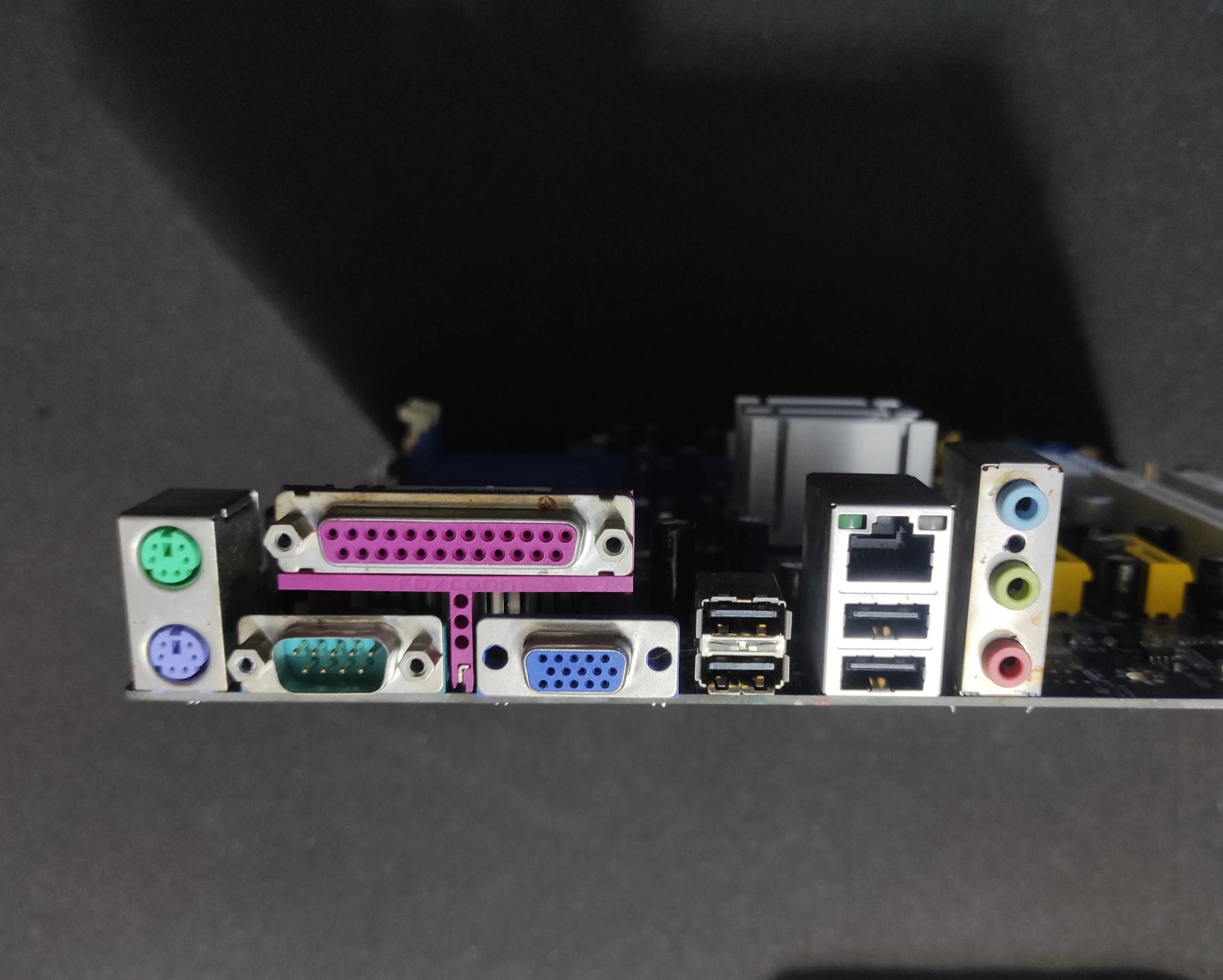

Back interfaces
|
USB count |
8 |
|
USB on back panel count |
4 |
|
USB 3.0 count |
0 |
|
USB 3.0 on back panel count |
0 |
|
FireWire interface count (IEEE1394a) |
0 |
|
FireWire on back panel interface count (IEEE1394a) |
0 |
|
FireWire interface count (IEEE1394b) |
0 |
|
FireWire on back panel interface count (IEEE1394b) |
0 |
|
Thunderbolt on back panel count |
0 |
|
S/PDIF |
yes |
|
COM port count |
1 |
|
COM port on back panel count |
1 |
|
GAME/MIDI |
no |
|
LPT |
yes |
|
LPT on back panel |
yes |
|
Component video output on the back panel |
no |
|
D-Sub (VGA) on the back panel |
yes |
|
DVI on the back panel |
no |
|
DisplayPort on the back panel |
no |
|
HDMI on the back panel |
no |
|
eSATA on the back panel |
0 |
|
eSATAp on the back panel |
0 |
|
PS/2 for keyboard |
yes |
|
PS/2 for mouse |
yes |
|
PS/2 for keyboard on back panel |
yes |
|
PS/2 for mouse on back panel |
yes |
|
Coaxial output on the back panel |
no |
|
Optical output on the back panel |
no |
Power
|
Motherboard power jack |
24-pin |
|
CPU power jack |
4-pin |
|
Cooling system type |
not specified |
