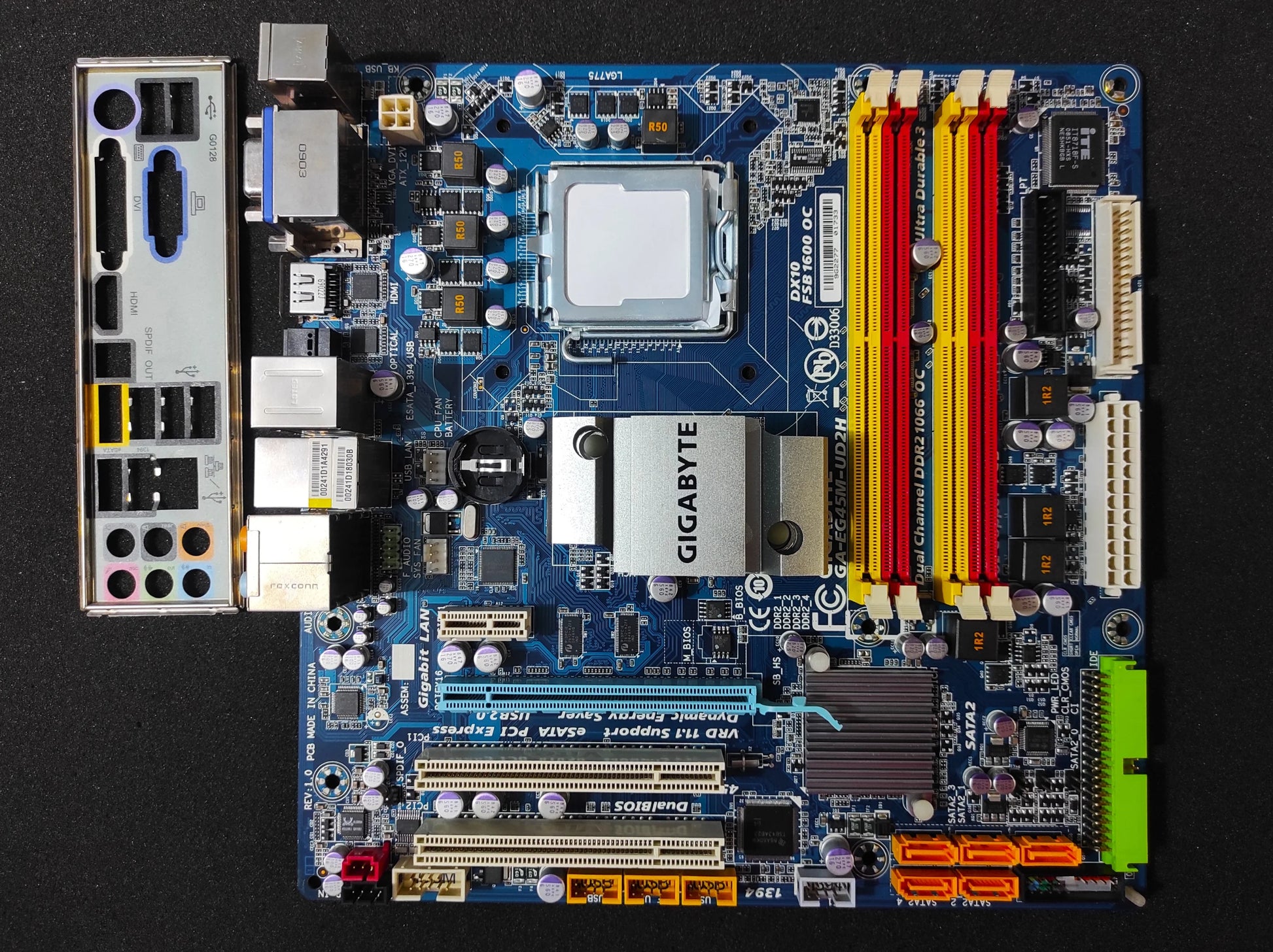

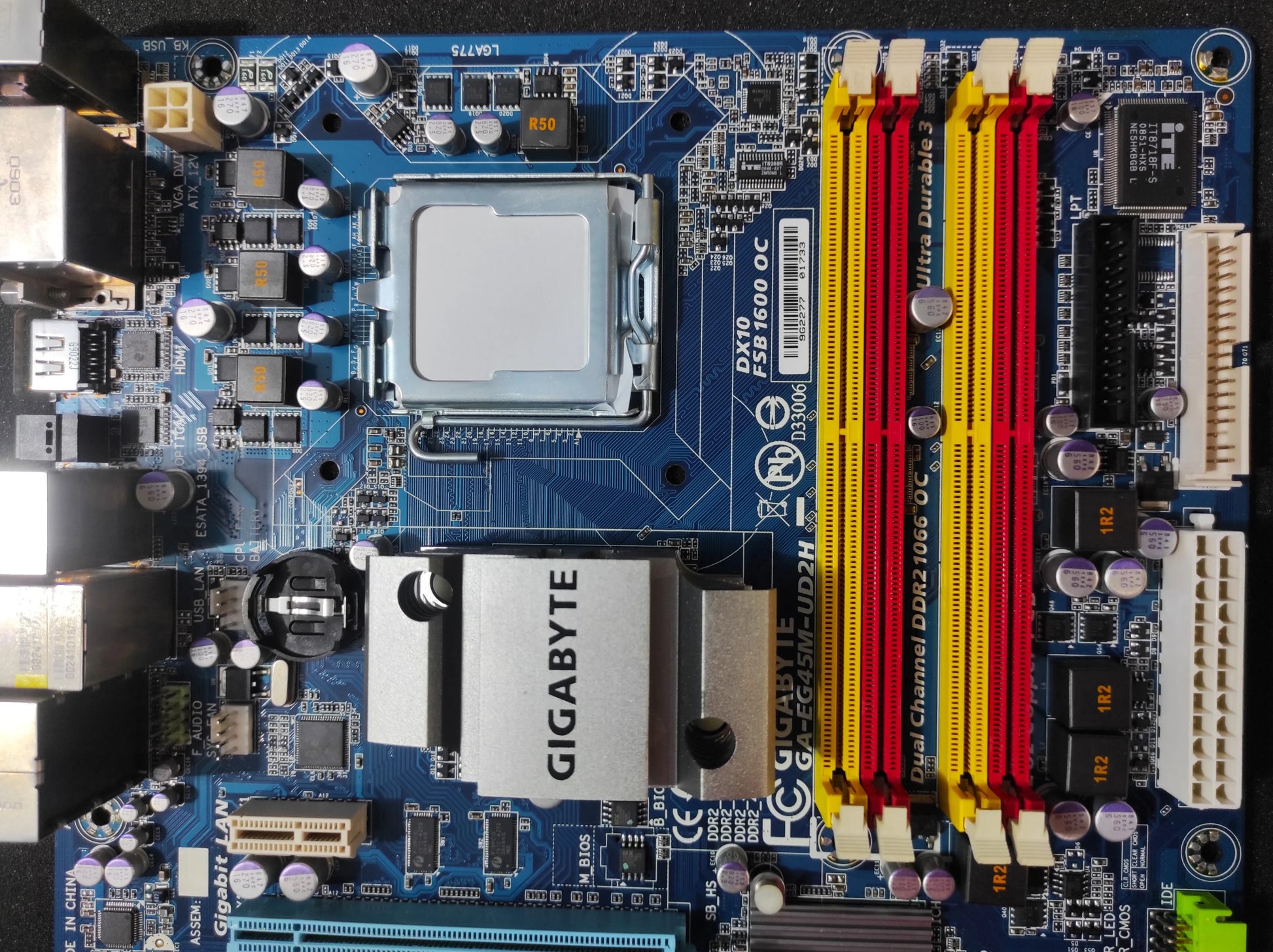

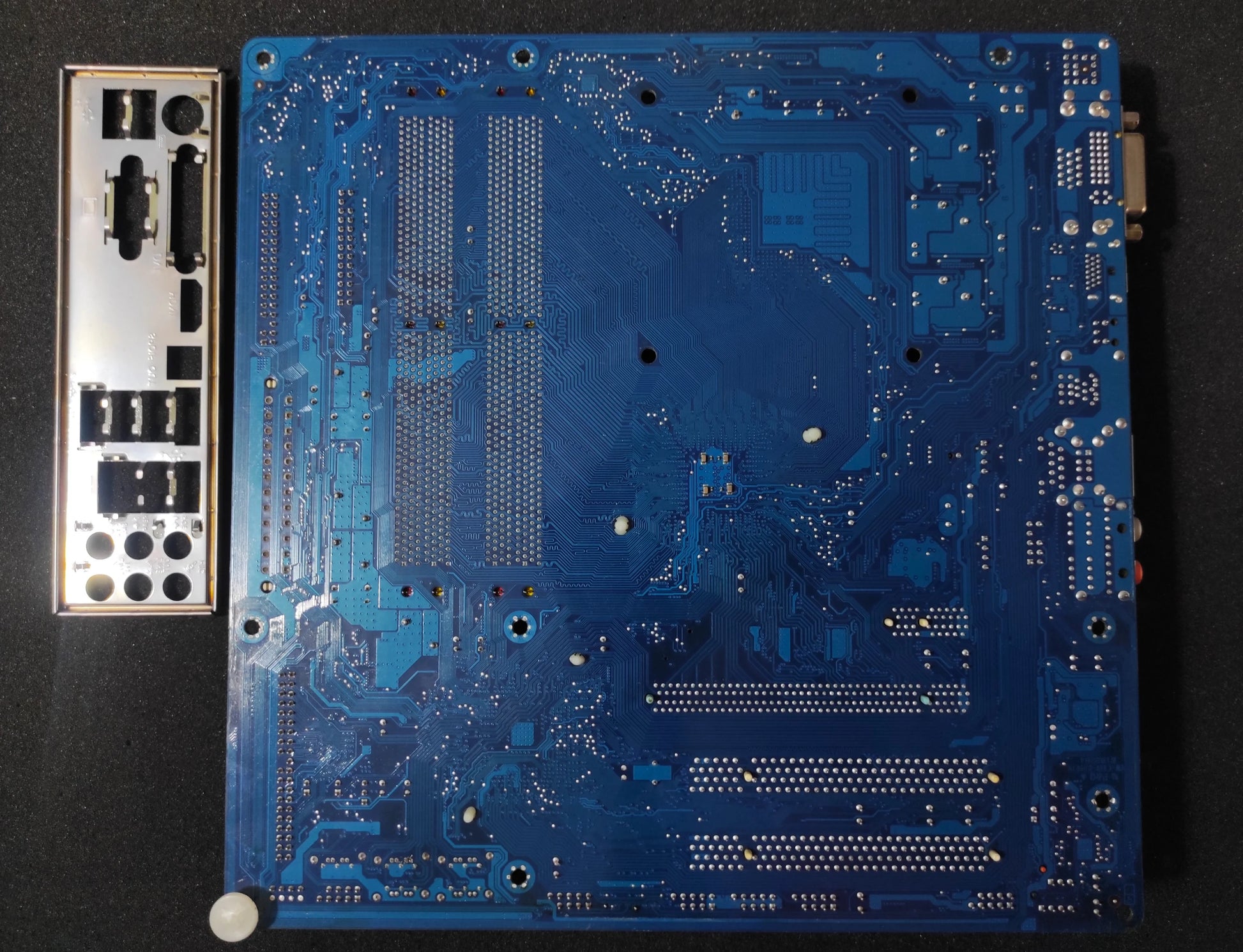

Gigabyte GA-EG45M-UD2H Socket 775 mATX Motherboard DDR2 PCIe x16  Intel G45 Chipset

• CPU

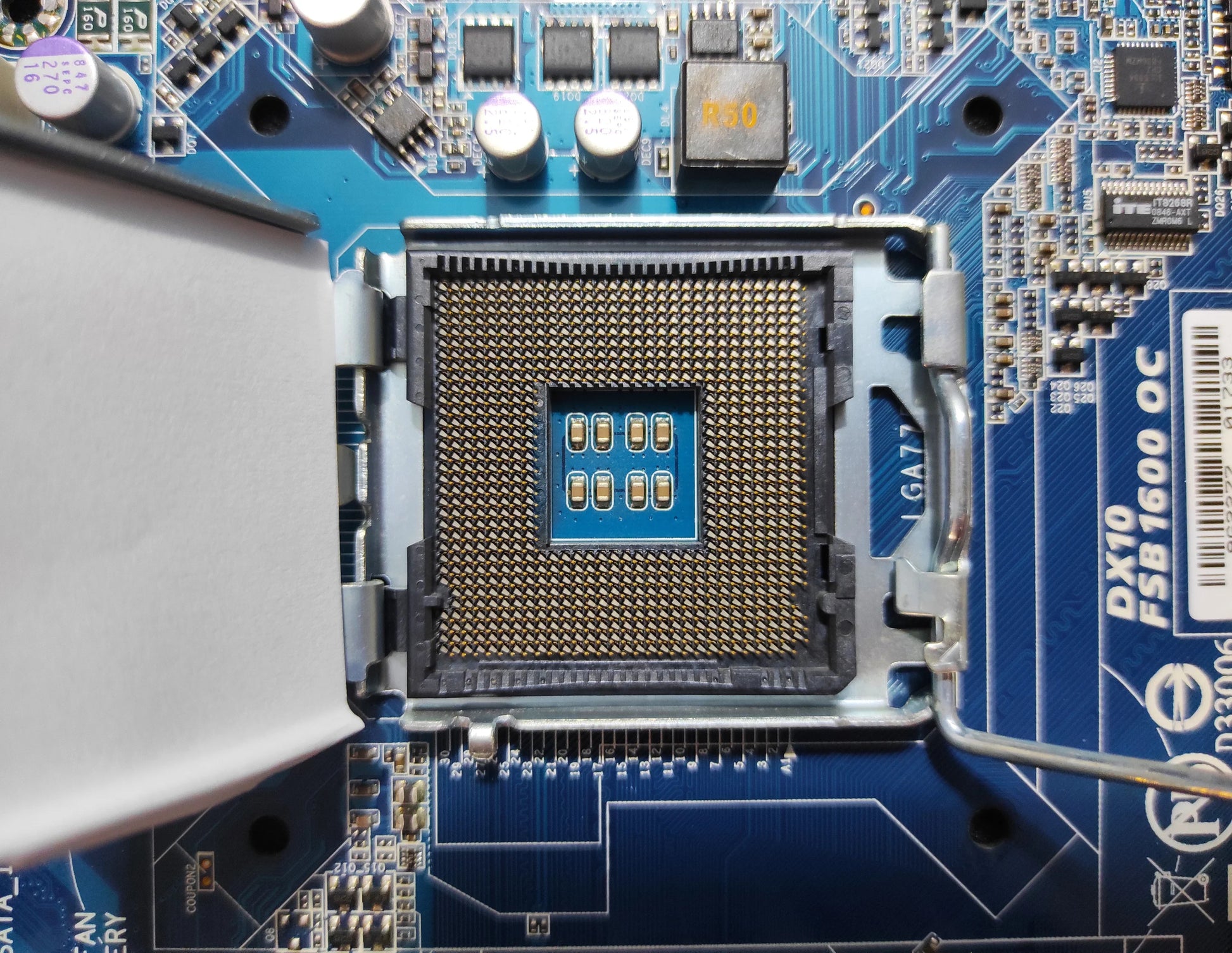

  1. Support for an Intel^®Core™ 2 Extreme processor/ Intel^®Core™ 2 Quad processor/Intel^®Core™ 2 Duo processor/Intel^®Pentium^®Dual-Core processo/Intel^®Celeron^®processor in the LGA 775 package
     (Go to GIGABYTE's website for the latest CPU support list.)
  2. L2 cache varies with CPU
• Front Side Bus
  1. 1600(O.C.)/1333/1066/800 MHz FSB
• Chipset
  1. North Bridge: Intel^®G45 Chipset
  2. South Bridge: Intel^®ICH10R
• Memory
  1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
  2. Dual channel memory architecture
  3. Support for DDR2 1066(O.C.)/800/667 MHz memory modules

  (Go to GIGABYTE's website for the latest memory support list.)
• Onboard Graphics
  North Bridge:

  1. 1 x D-Sub port
  2. 1 x DVI-D port (Note 1)
  3. 1 x HDMI port (Note 2)
• Audio
  1. Realtek ALC889A codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for Dolby^®Home Theater
  5. Support for S/PDIF In/Out
  6. Support for CD In
• LAN
  1. Realtek 8111DL chip (10/100/1000 Mbit)

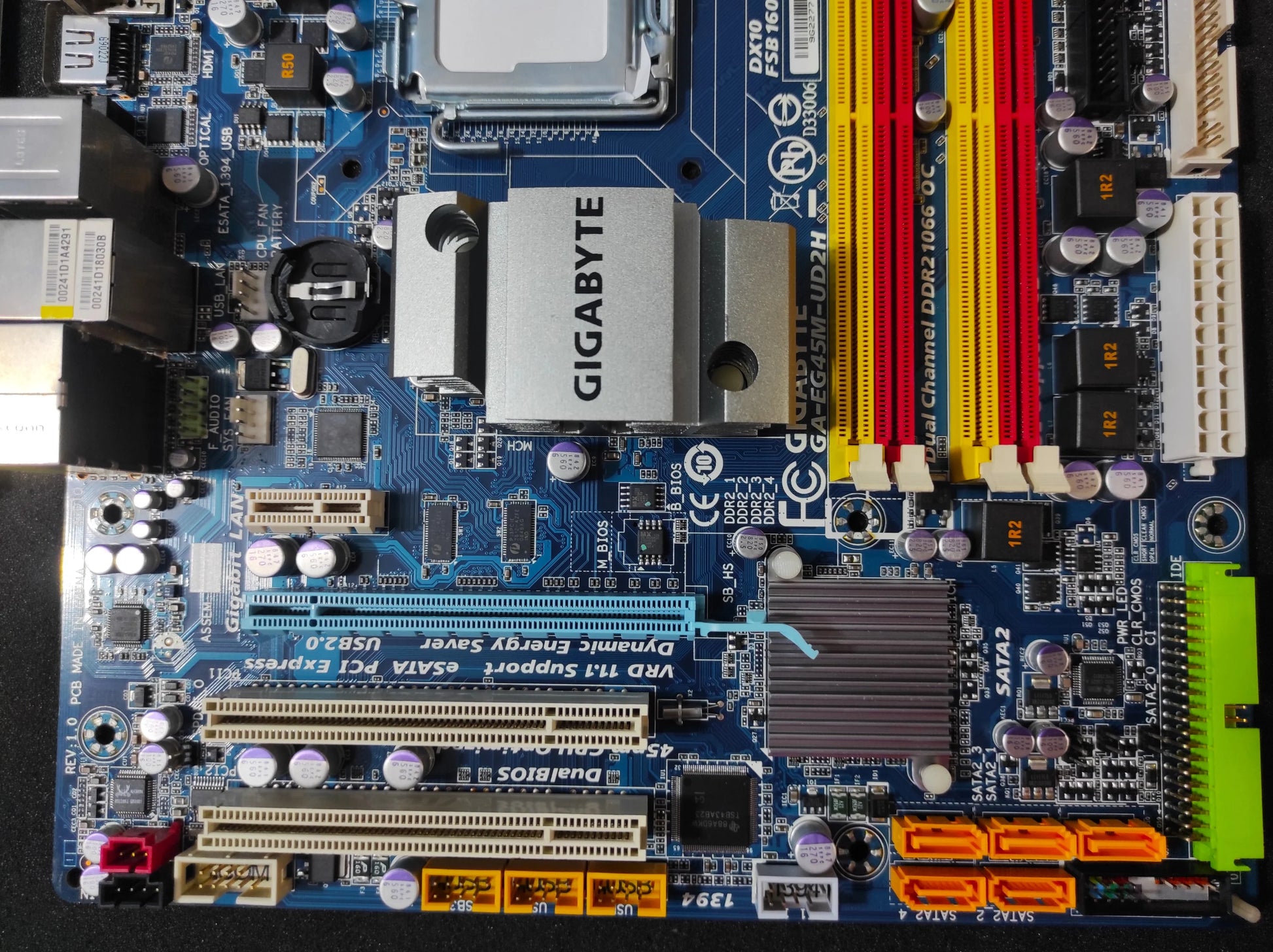

• Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
  2. 1 x PCI Express x1 slot
  3. 2 x PCI slots
• Storage Interface
  South Bridge:

  1. 5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
  2. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
  3. Support for SATA RAID 0, RAID 1, RAID 5 and RAID 10

  JMicron 368 chip:

  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

  iTE IT8718 chip:

  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
• USB
  1. Integrated in the South Bridge
  2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets connected to the internal USB headers)
• IEEE 1394
  1. T.I. TSB43AB23 chip
  2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394 bracket connected to the internal IEEE 1394 header)
• Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 5 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 1 x system fan header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x CD In connector
  11. 1 x S/PDIF In header
  12. 1 x S/PDIF Out header
  13. 3 x USB 2.0/1.1 headers
  14. 1 x IEEE 1394a header
  15. 1 x parallel port header
  16. 1 x serial port header
  17. 1 x power LED header
  18. 1 x chassis intrusion header

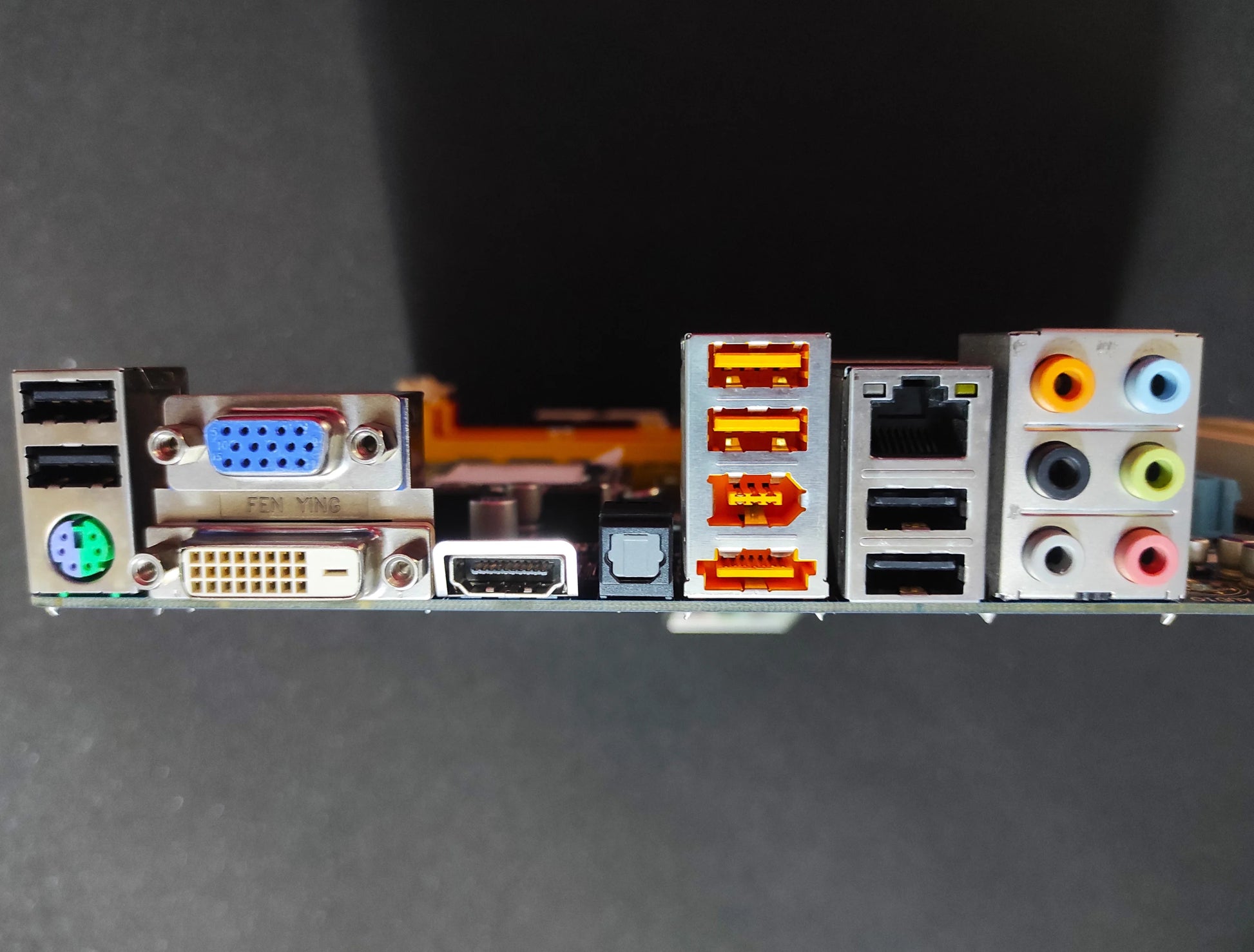

• Back Panel Connectors
  1. 1 x PS/2 keyboard or PS/2 mouse port
  2. 1 x D-Sub port
  3. 1 x DVI-D port
  4. 1 x HDMI port
  5. 1 x optical S/PDIF Out connector
  6. 1 x eSATA 3Gb/s port
  7. 1 x IEEE 1394a port
  8. 6 x USB 2.0/1.1 ports
  9. 1 x RJ-45 port
  10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)
• I/O Controller
  1. iTE IT8718 chip
• H/W Monitoring
  1. System voltage detection
  2. CPU/System temperature detection
  3. CPU/System fan speed detection
  4. CPU overheating warning
  5. CPU/System fan fail warning
  6. CPU fan speed control

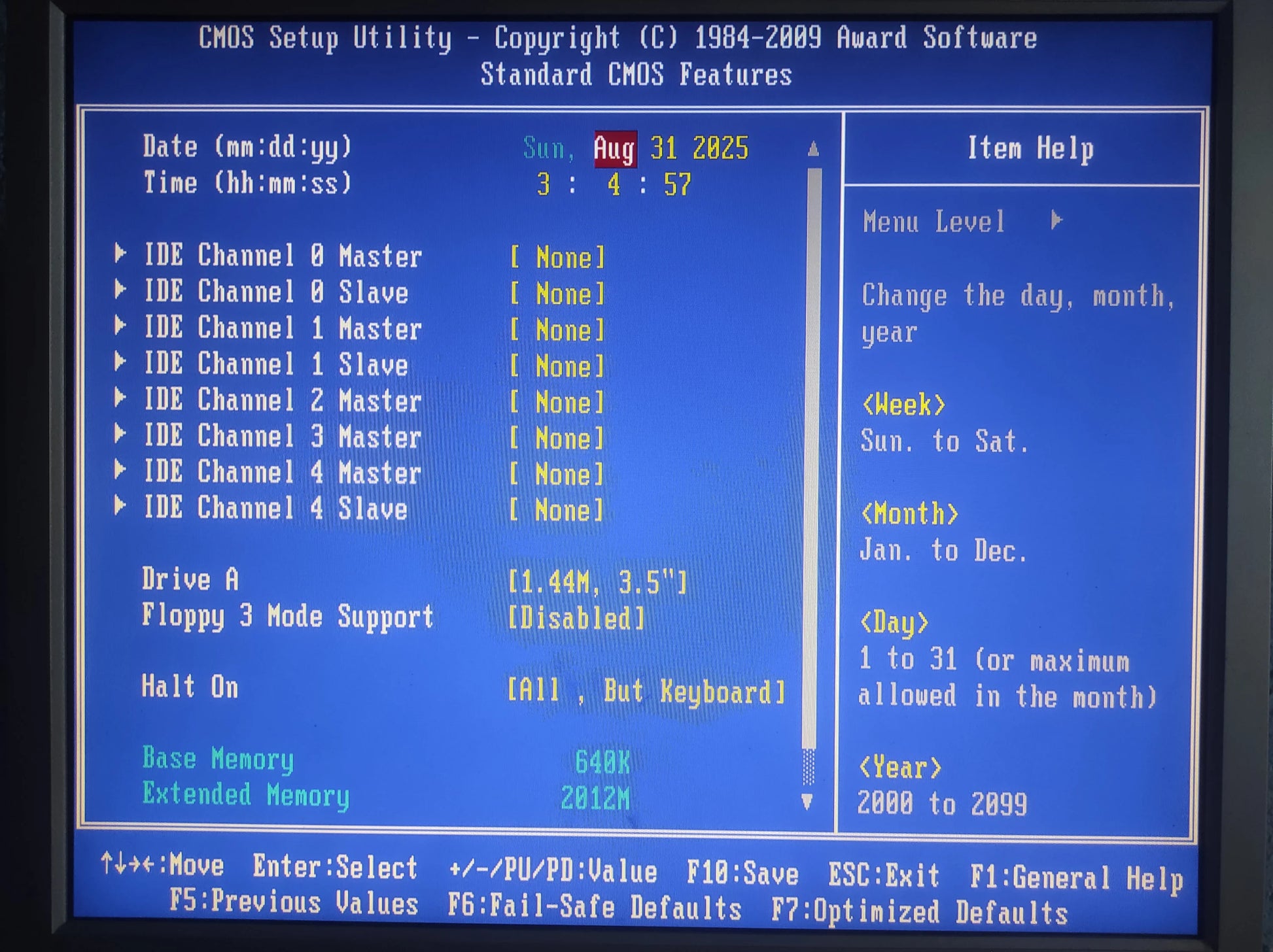

• BIOS
  1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
• Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Virtual Dual BIOS
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune
  8. Support for Dynamic Energy Saver Advanced
  9. Support for Time Repair
  10. Support for Q-Share
• Operating System
  1. Support for Microsoft^®Windows^®Vista/XP
• Form Factor
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
• Note
  (Note 1)The DVI-D port does not support D-Sub connection by adapter.
  (Note 2)The PCI Express x16 slot share the PCI Express x16 bus with the HDMI and the DVI-D ports.When the PCI Express x16 slot is in use, the HDMI and the DVI-D ports become unavailable.
• Remark
  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
