Gigabyte GA-F2A88XM-HD3 Socket FM2+ ATX AMD DDR3 Motherboard AMD A88X Chipset

Gigabyte GA-F2A88XM-HD3 Socket FM2+ ATX AMD DDR3 Motherboard AMD A88X Chipset

€44,90 EUR
€44,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

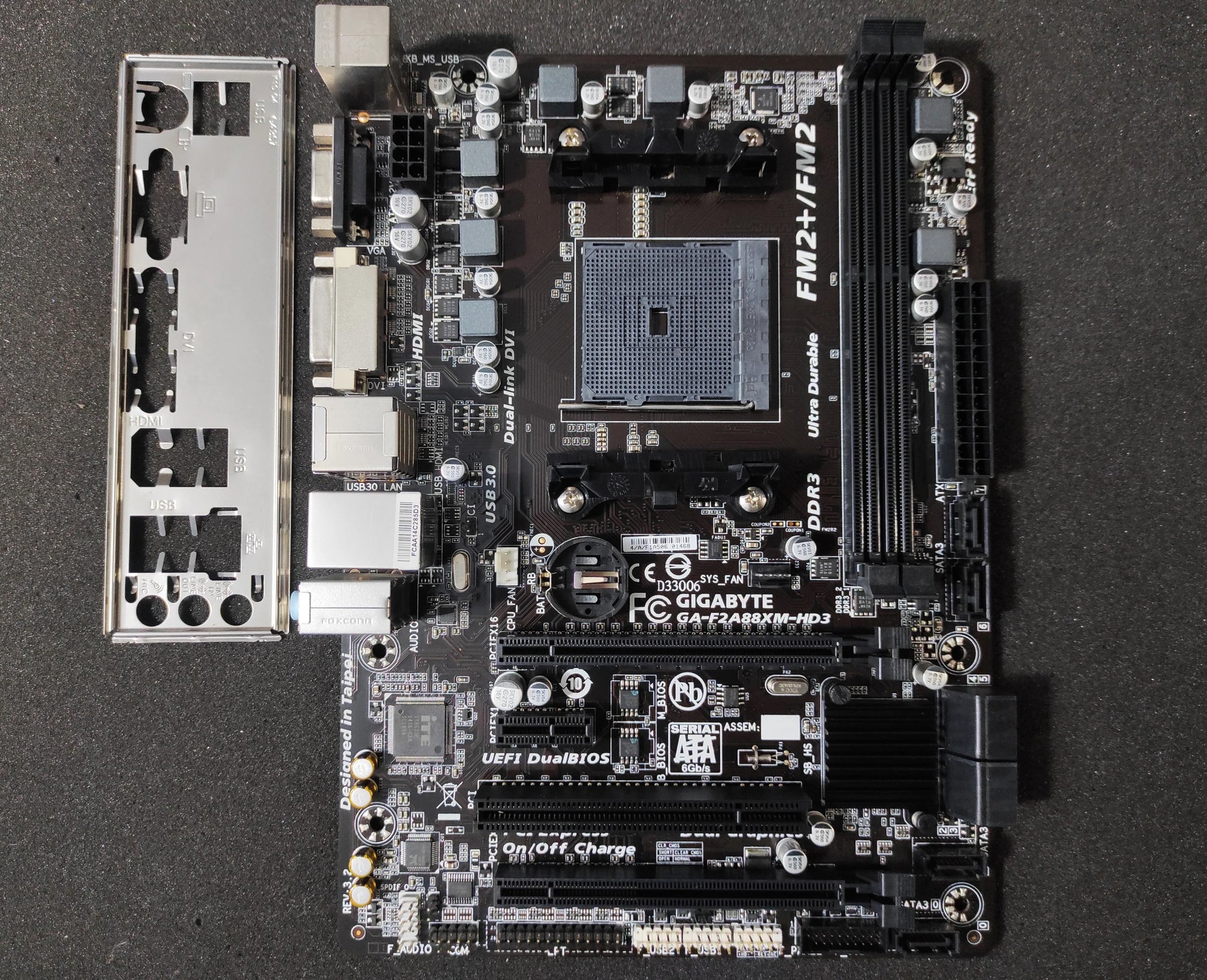

Gigabyte GA-F2A88XM-HD3 Rev. 3.2

Socket FM2+

ATX, AMD, DDR3 Motherboard

AMD A88X Chipset

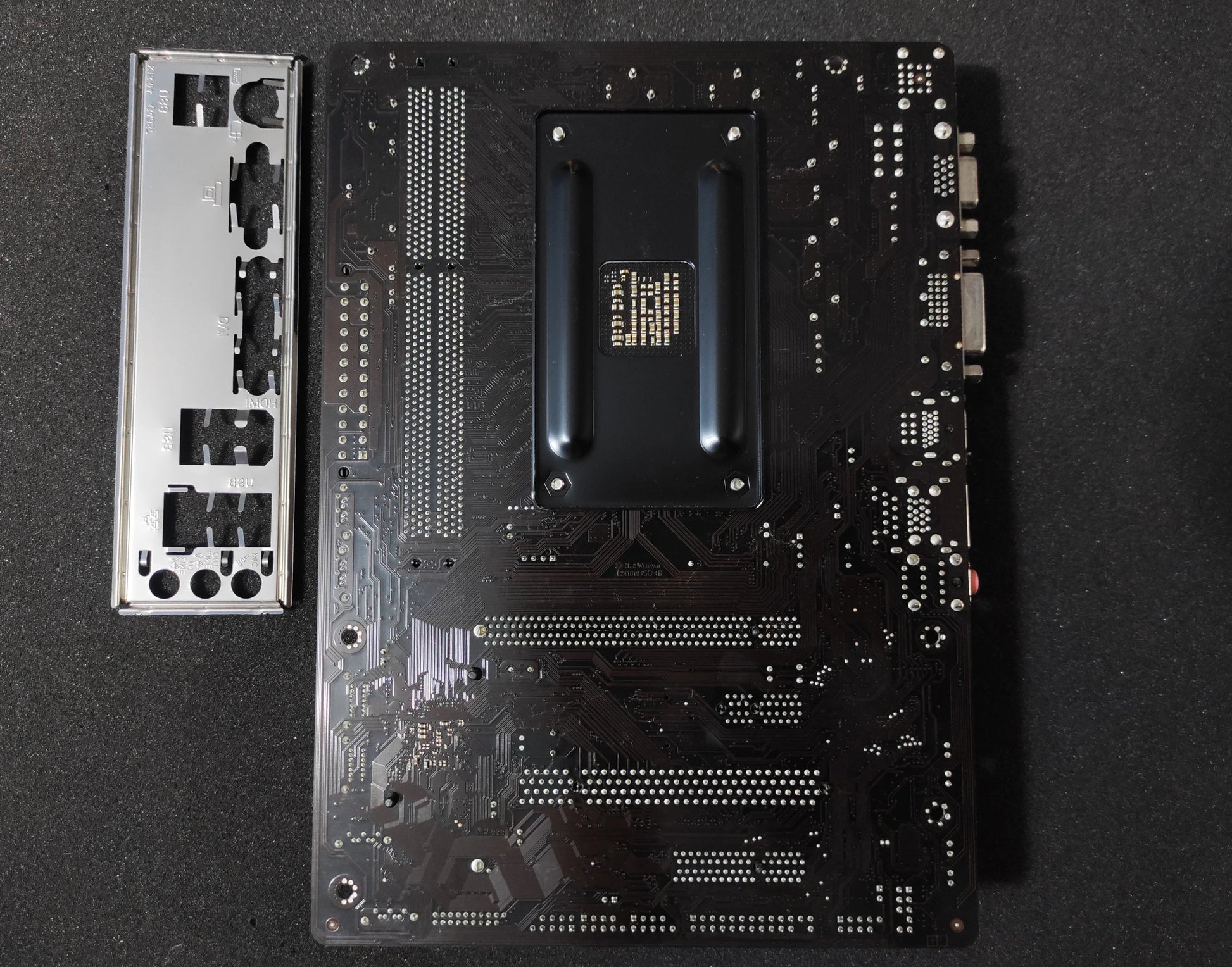

Used motherboard, tested working and in excellent condition! I/O Shield included!

GA-F2A88XM-HD3


    • APU
      FM2+ Socket:
      1. AMD A series processors
      2. AMD Athlon™ series processors
      (Please refer "CPU Support List" for more information.)
    • Chipset
      1. AMD A88X
    • Memory
      1. 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
      * The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
      1. Dual channel memory architecture
      2. Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
      3. Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules
      (Please refer "Memory Support List" for more information.)

    • Onboard Graphics
      APU with integrated AMD Radeon™ HD 8000/7000 series graphics:
      * To use the onboard graphics ports, you must install an AMD APU with integrated graphics.
      1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
      2. 1 x DVI-D port, supporting a maximum resolution of 2560x1600
      * Support for 2560x1600 resolution requires both a monitor and cable that support Dual Link DVI.
      * The DVI-D port does not support D-Sub connection by adapter.
      1. 1 x HDMI port, supporting a maximum resolution of 4096x2160
      * The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
      * Support for HDMI 1.4a version.
      1. Maximum shared memory of 2 GB

    • Audio
      1. Realtek®ALC887 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel
        * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
      4. Support for S/PDIF Out

    • LAN
      1. Realtek®GbE LAN chip (10/100/1000 Mbit)

    • Expansion Slots
      1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
      1. (The PCIEX16 slot conforms to PCI Express 3.0 standard.)

      * To support PCI Express 3.0, you must install an FM2+ APU.
      1. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
      2. 1 x PCI Express x1 slot
        (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
      3. 1 x PCI slot

    • Multi-Graphics Technology
      1. Support for AMD CrossFire™ technology
      2. Support for AMD Dual Graphics technology
      * Only A series APUs support AMD Dual Graphics.
    • Storage Interface
      Chipset:
      1. 8 x SATA 6Gb/s connectors
      2. Support for RAID 0, RAID 1, RAID 5, RAID 10, and JBOD

    • USB
      Chipset:
      1. 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
      2. 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

    • Internal I/O Connectors
      1. 1 x 24-pin ATX main power connector
      2. 1 x 8-pin ATX 12V power connector
      3. 8 x SATA 6Gb/s connectors
      4. 1 x APU fan header
      5. 1 x system fan header
      6. 1 x front panel header
      7. 1 x front panel audio header
      8. 1 x S/PDIF Out header
      9. 1 x USB 3.0/2.0 header
      10. 2 x USB 2.0/1.1 headers
      11. 1 x serial port header
      12. 1 x parallel port header
      13. 1 x chassis intrusion header
      14. 1 x Clear CMOS jumper

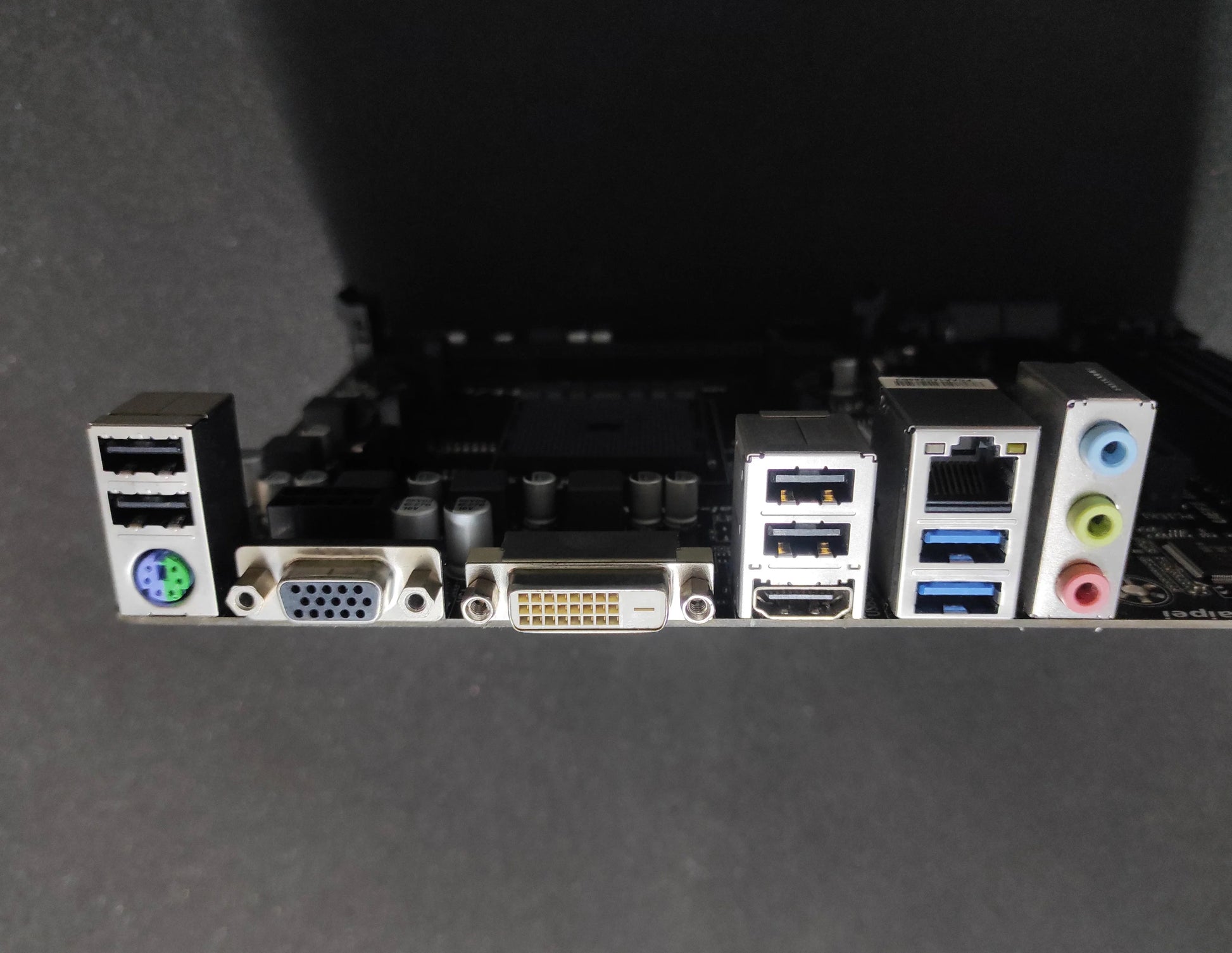

    • Back Panel Connectors
      1. 1 x PS/2 keyboard/mouse port
      2. 1 x D-Sub port
      3. 1 x DVI-D port
      4. 1 x HDMI port
      5. 2 x USB 3.0/2.0 ports
      6. 4 x USB 2.0/1.1 ports
      7. 1 x RJ-45 port
      8. 3 x audio jacks (Line In, Line Out, Mic In)

    • I/O Controller
      1. iTE®I/O Controller Chip

    • H/W Monitoring
      1. System voltage detection
      2. APU/System temperature detection
      3. APU/System fan speed detection
      4. APU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.

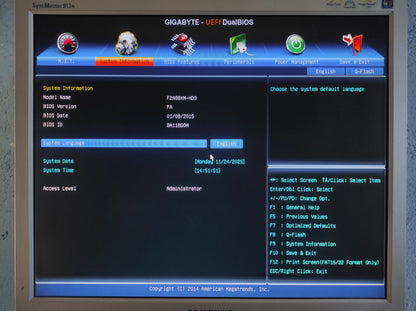

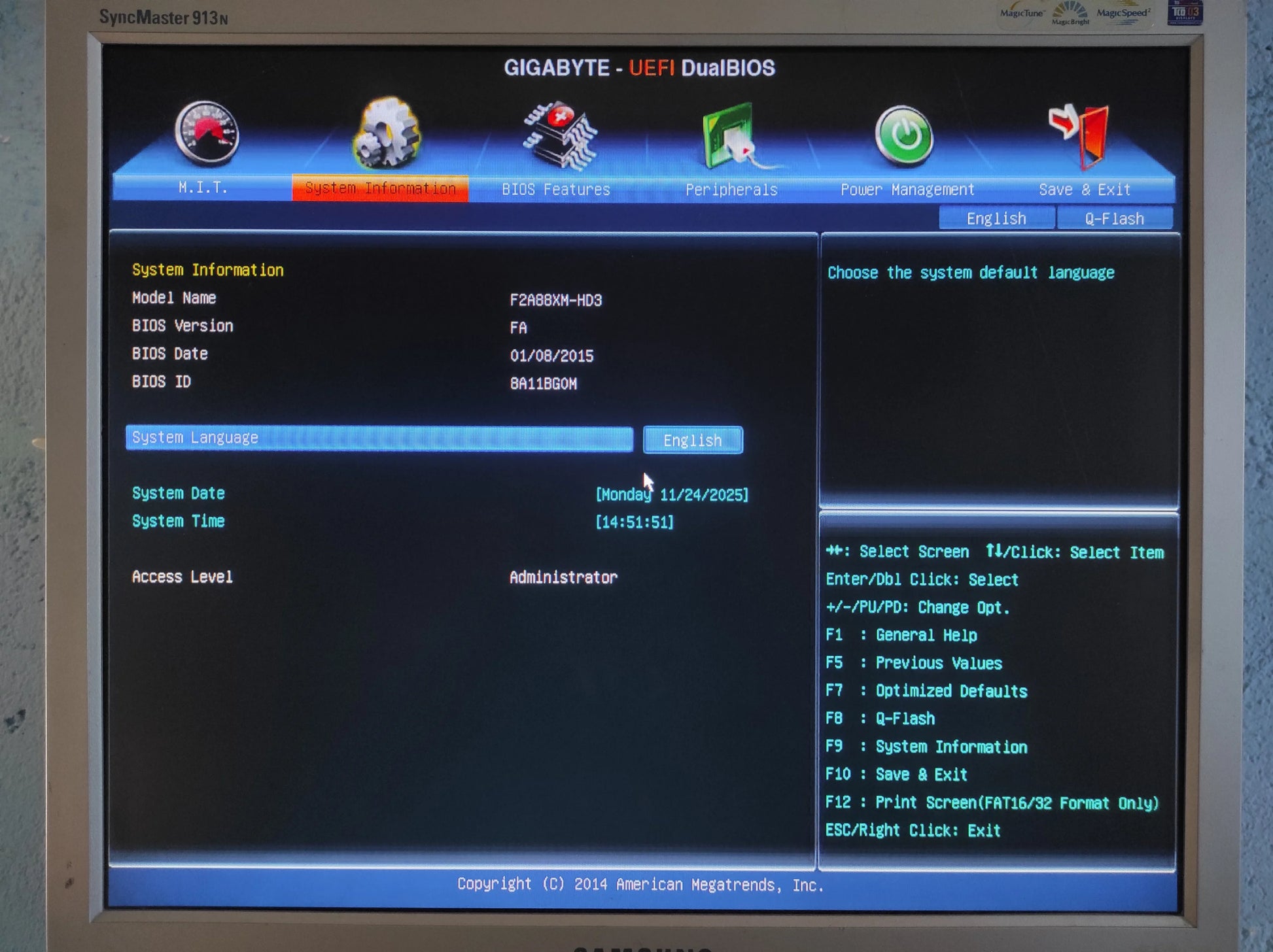

    • BIOS
      1. 2 x 64 Mbit flash
      2. Use of licensed AMI EFI BIOS
      3. Support for DualBIOS™
      4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    • Unique Features
      1. Support for @BIOS
      2. Support for Q-Flash
      3. Support for Xpress Install
      4. Support for EasyTune
      * Available functions in EasyTune may differ by motherboard model.
      1. Support for Smart Recovery 2
      2. Support for ON/OFF Charge


    • Operating System
      1. Support for Windows 8.1/8/7 32-bit/64-bit
      * If you plan to install Windows 8.1, please download the latest drivers from GIGABYTE's website.
      1. Support for Windows XP 32-bit
      * To support Windows XP 32-bit, you must install an AMD FM2 Trinity APU.
      * It requires Service Pack 3 to support Windows XP driver installation.
    • Form Factor
      1. Micro ATX Form Factor; 24.4cm x 17.4cm

    • Remark

      Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
