Gigabyte GA-MA770T-UD3P

Socket AM3 ATX AMD DDR3 Motherboard AMD 770/SB710 Chipset

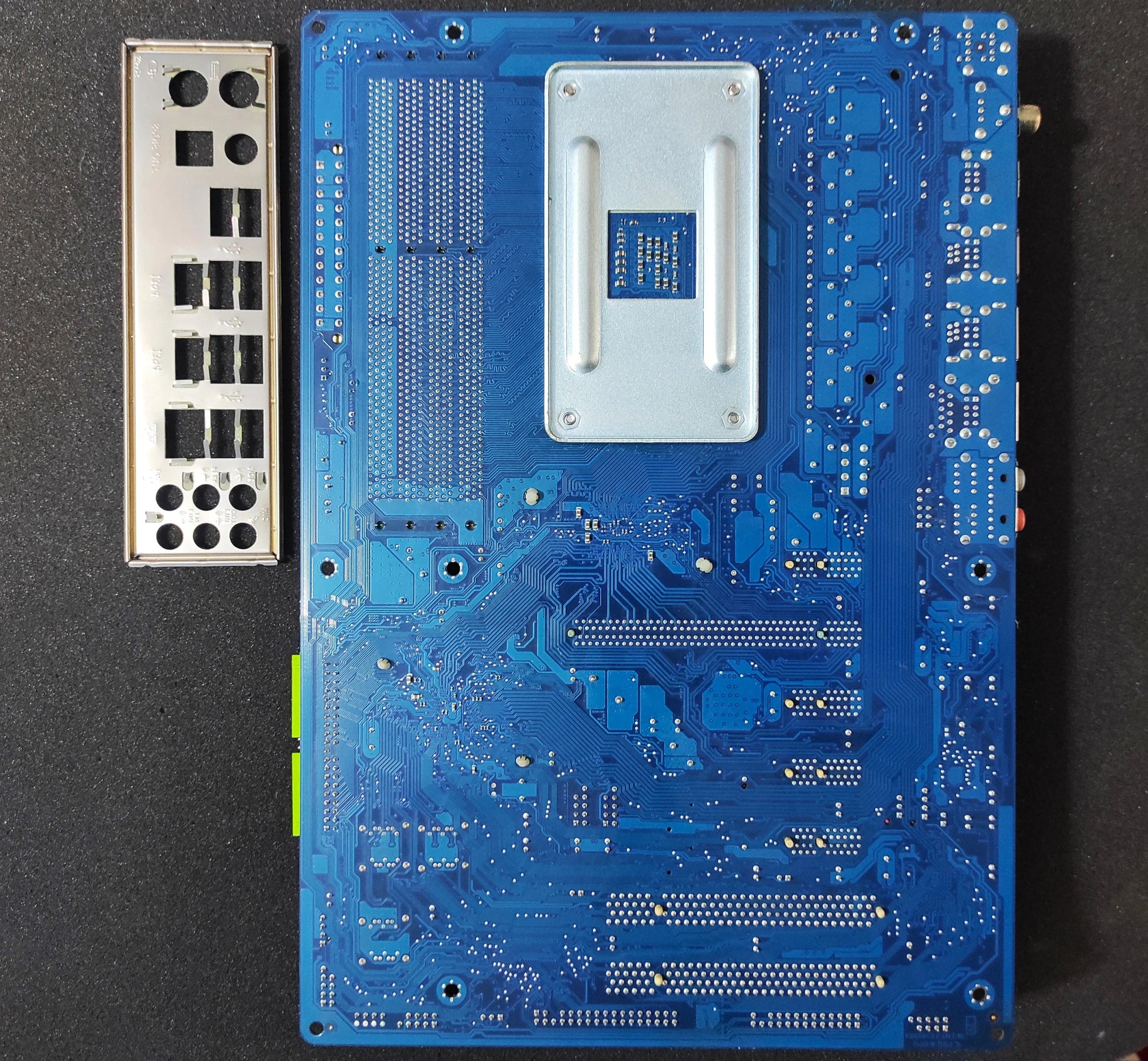

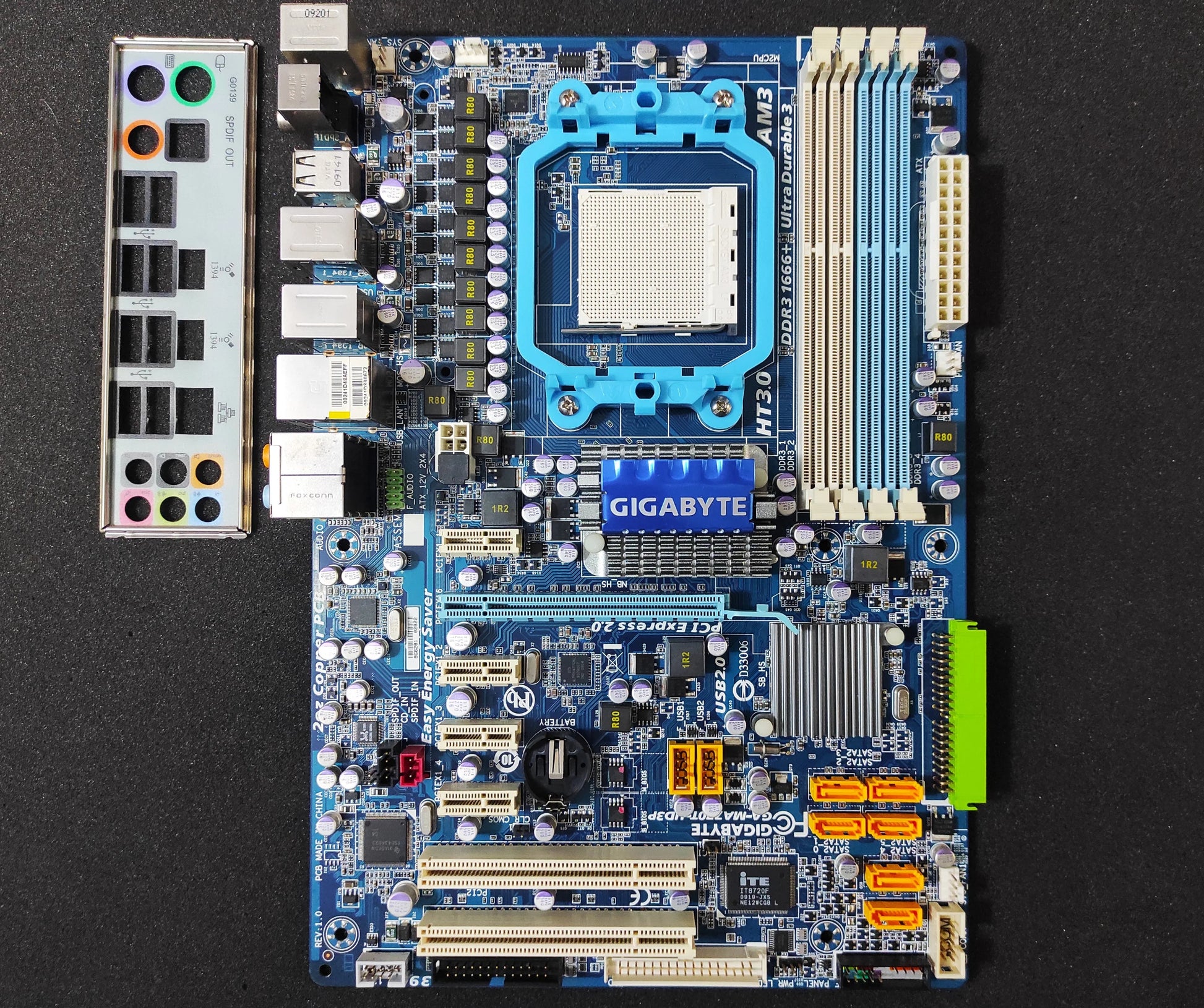

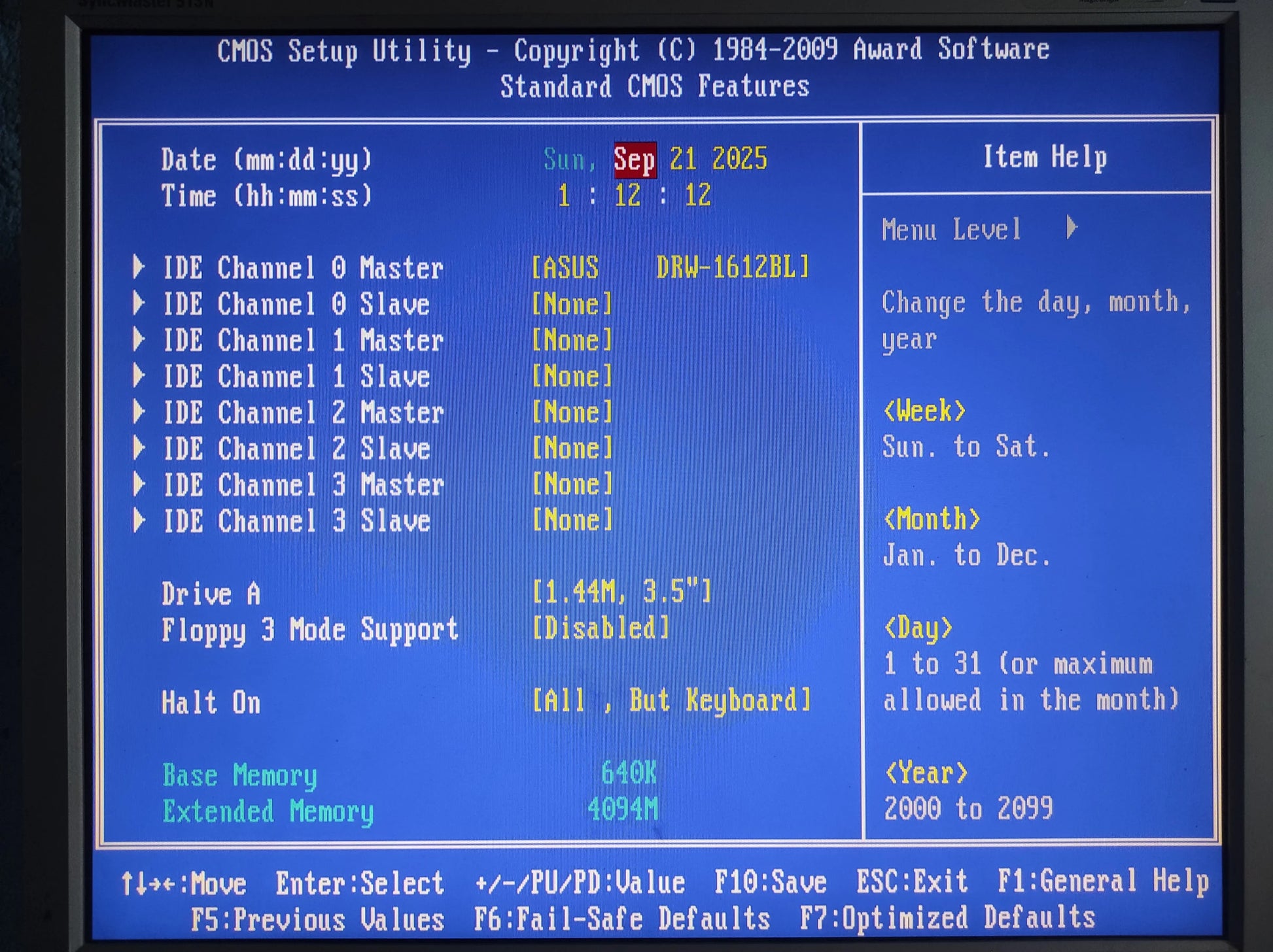

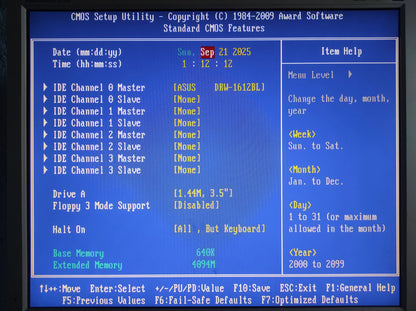

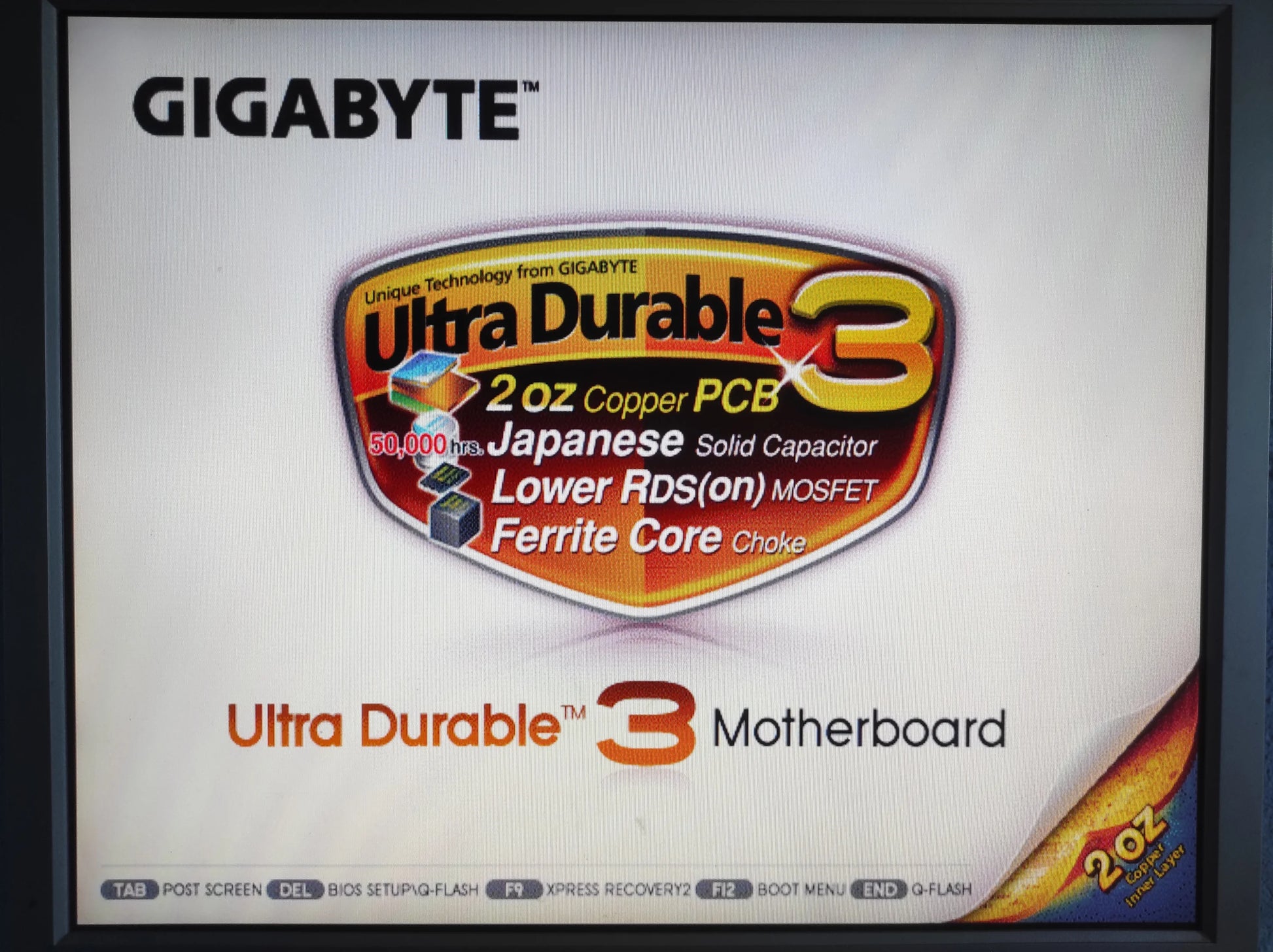

Used motherboard, tested working and in excellent condition! I/O Shield included!
CPU
  1. Support for AM3 processors
Hyper Transport Bus
  1. 5200/2000 MT/s
Chipset
  1. North Bridge: AMD 770
  2. South Bridge: AMD SB710
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note2)
  2. Dual channel memory architecture
  3. Support for DDR3 1666(OC)/1333/1066 MHz memory modules
  4. Support ECC memory (Note 3)
Audio
  1. Realtek ALC888 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
  4. Support for S/PDIF In/Out
  5. Support for CD In
LAN
  1. Realtek 8111C/D(L) chip (10/100/1000 Mbit)

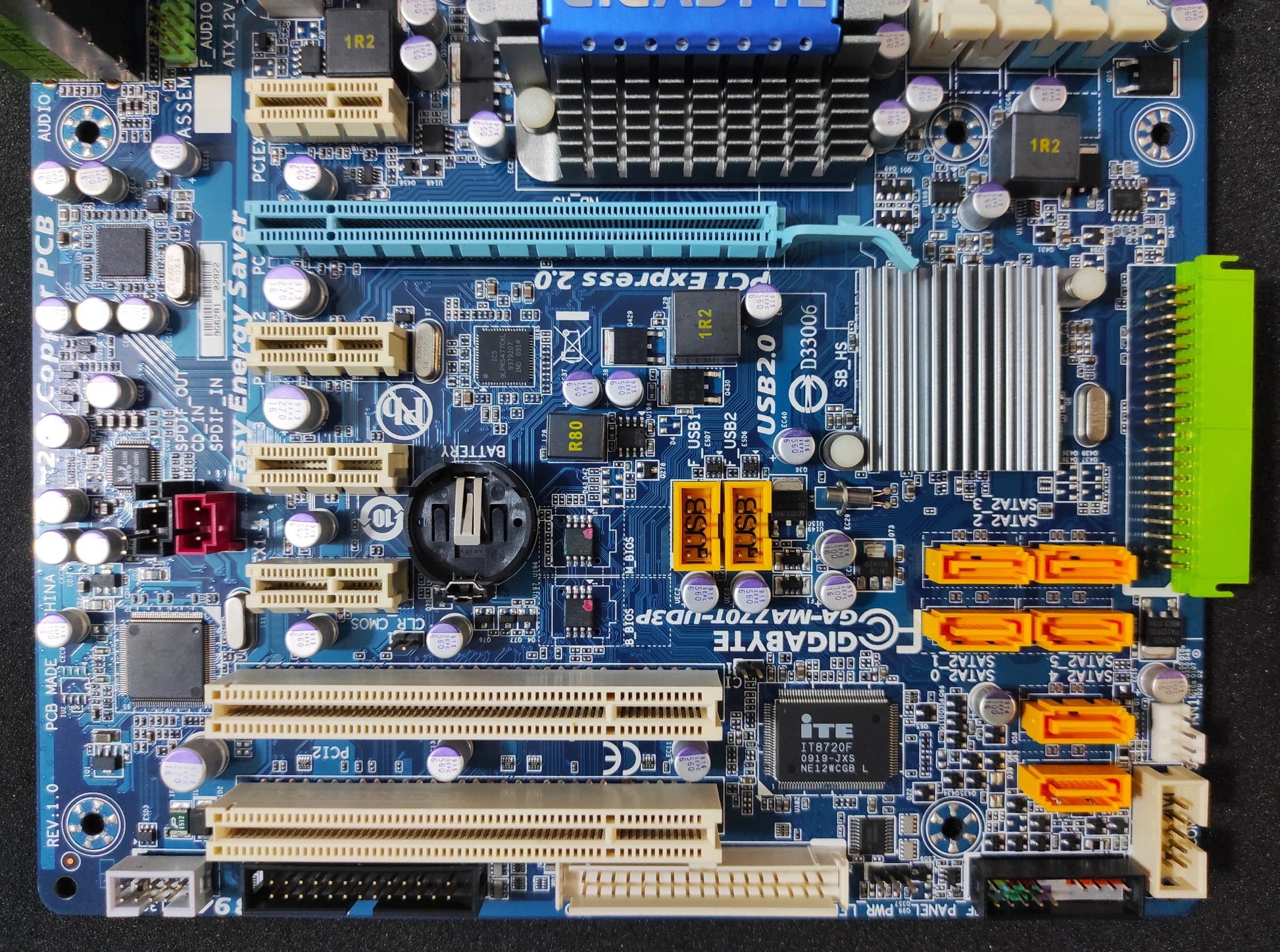

Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIE_16)
    (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
  2. 4 x PCI Express x1 slots
  3. 2 x PCI slots
Storage Interface South Bridge:

  1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
  3. Support for SATA RAID 0, RAID 1 and RAID 0+1

iTE IT8720 chip:

  1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
IEEE 1394 T.I. TSB43AB23 chip

  1. Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a headers)
USB Integrated in the South Bridge

  1. Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy disk drive connector
  4. 1 x IDE connector
  5. 6 x SATA 3Gb/s connectors
  6. 1 x CPU fan header
  7. 2 x system fan headers
  8. 1 x power fan header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x CD In connector
  12. 1 x S/PDIF In header
  13. 1 x S/PDIF Out header
  14. 2 x USB 2.0/1.1 headers
  15. 1 x IEEE 1394a header
  16. 1 x parallel port header
  17. 1 x serial port header
  18. 1 x power LED header
  19. 1 x chassis intrusion header

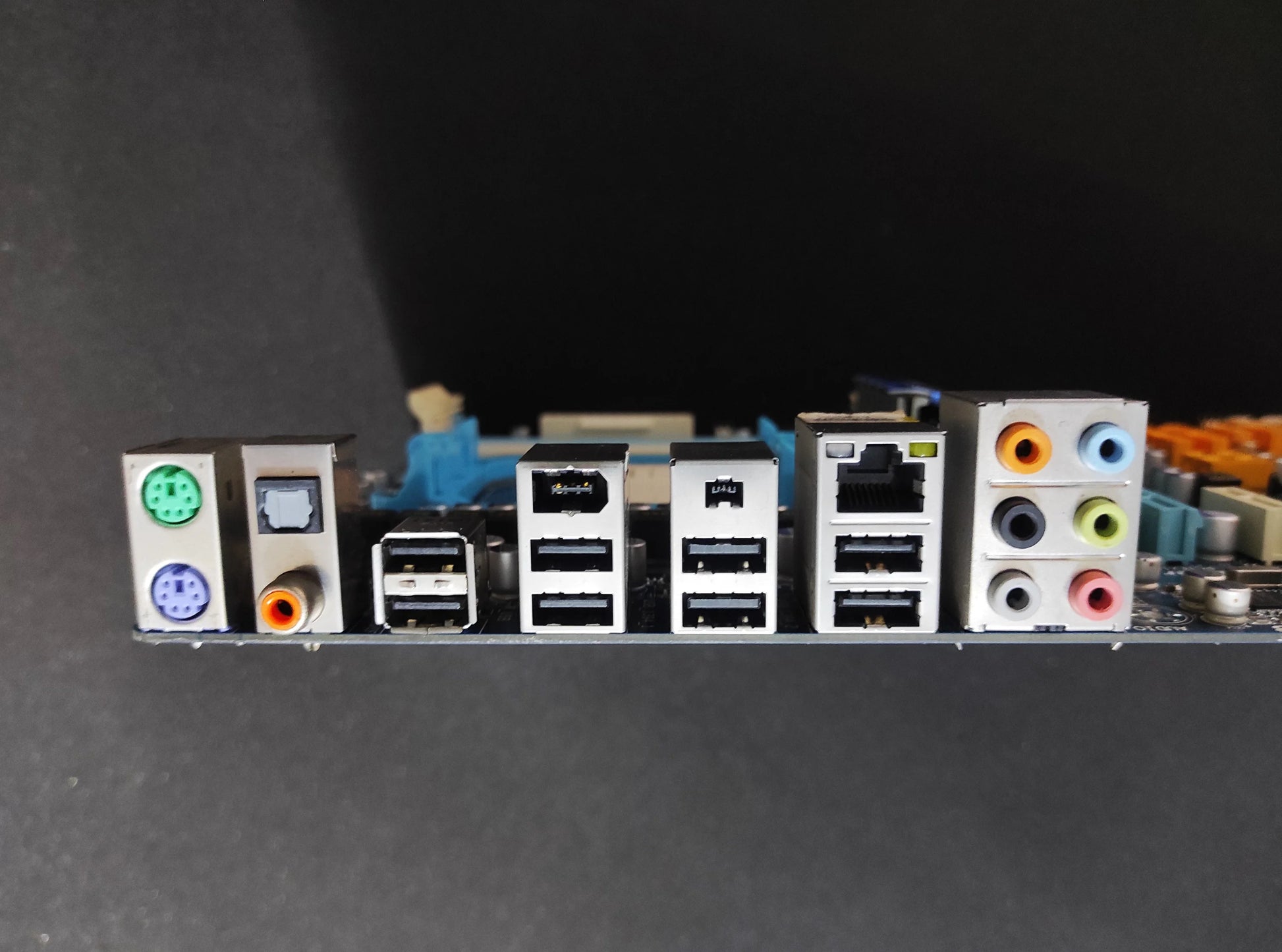

Back Panel Connectors
  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x coaxial S/PDIF Out connector
  4. 1 x optical S/PDIF Out connector
  5. 8 x USB 2.0/1.1 ports
  6. 2 x IEEE 1394a ports
  7. 1 x RJ-45 port
  8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8720 chip
H/W Monitoring System voltage detection

  1. CPU/System temperature detection
  2. CPU/System/Power fan speed detection
  3. CPU overheating warning
  4. CPU/System/Power fan fail warning
  5. CPU fan speed control (Note 4)
BIOS
  1. 2 x 8 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support DualBIOS
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Download Center
  3. Support for Q-Flash
  4. Support for EasyTune (Note 5)
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for Virtual Dual BIOS
  8. Support for Easy Energy Saver
Operating System
  1. Support for MicrosoftWindows Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 21.0cm
Note (Note 1) We recommend that you enhance heat dissipation for the CPU VRM area if an AMD Black Edition CPU is installed and the Advanced Clock Calibration is enabled.
(Note 2) Due to WindowsXP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 3) Use of a CPU that supports ECC is required if you wish to install ECC memory.
(Note 4) Whether the CPU/ system fan speed control function is supported will depend on the CPU/ system cooler you installed.
(Note 5) Available functions in EasyTune may differ by motherboard model.
