HP FMB-0601 XW6400 Motherboard Socket 771 442029-001 380689-002 Intel 5000X Chipset

HP FMB-0601 XW6400 Motherboard Socket 771 442029-001 380689-002 Intel 5000X Chipset

€149,90 EUR
€149,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

HP FMB-0601 Motherboard

XW6400 System Board

Dual Socket 771

DDR2 Fully Buffered and ECC

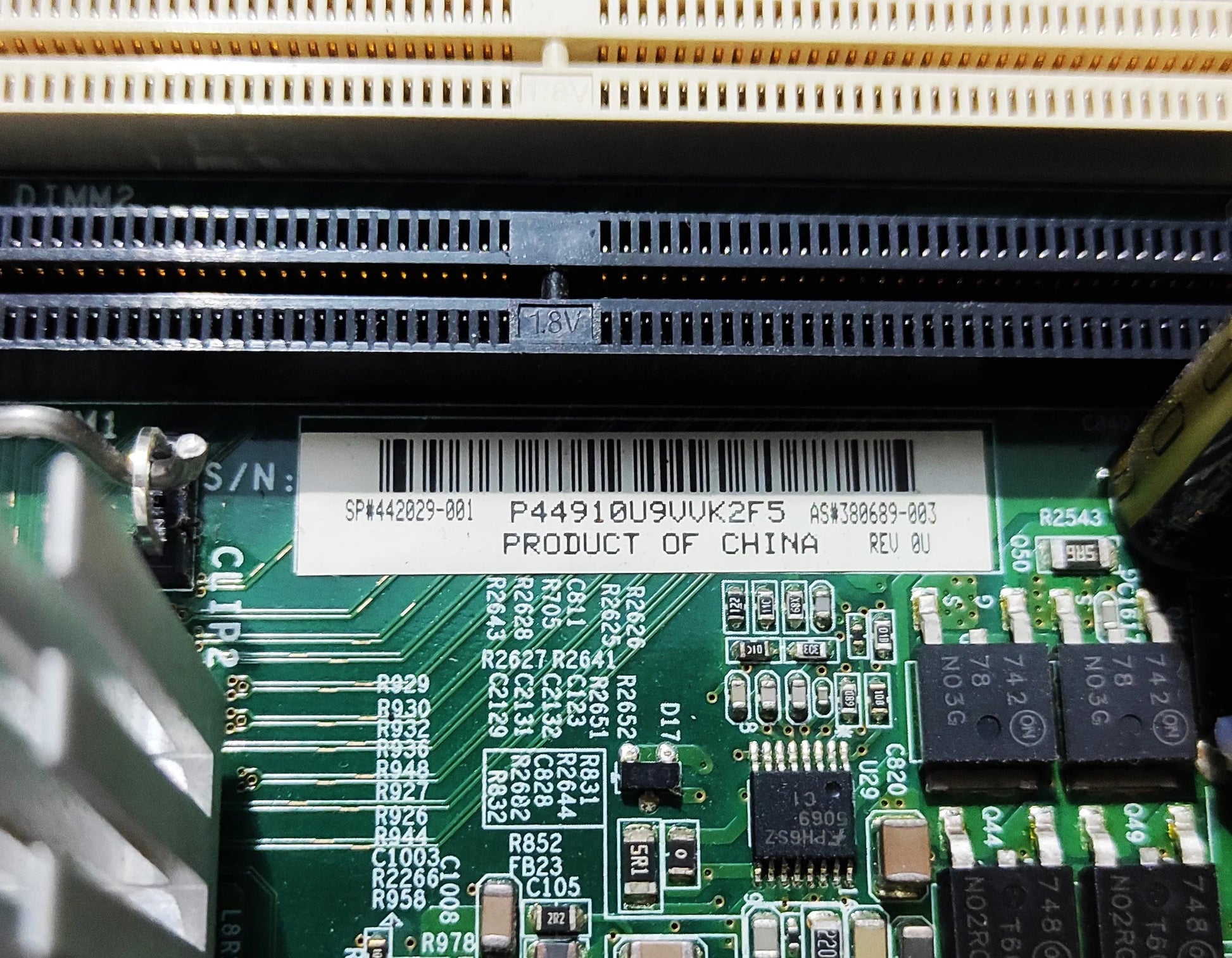

442029-001 380689-002

Intel 5000X Chipset

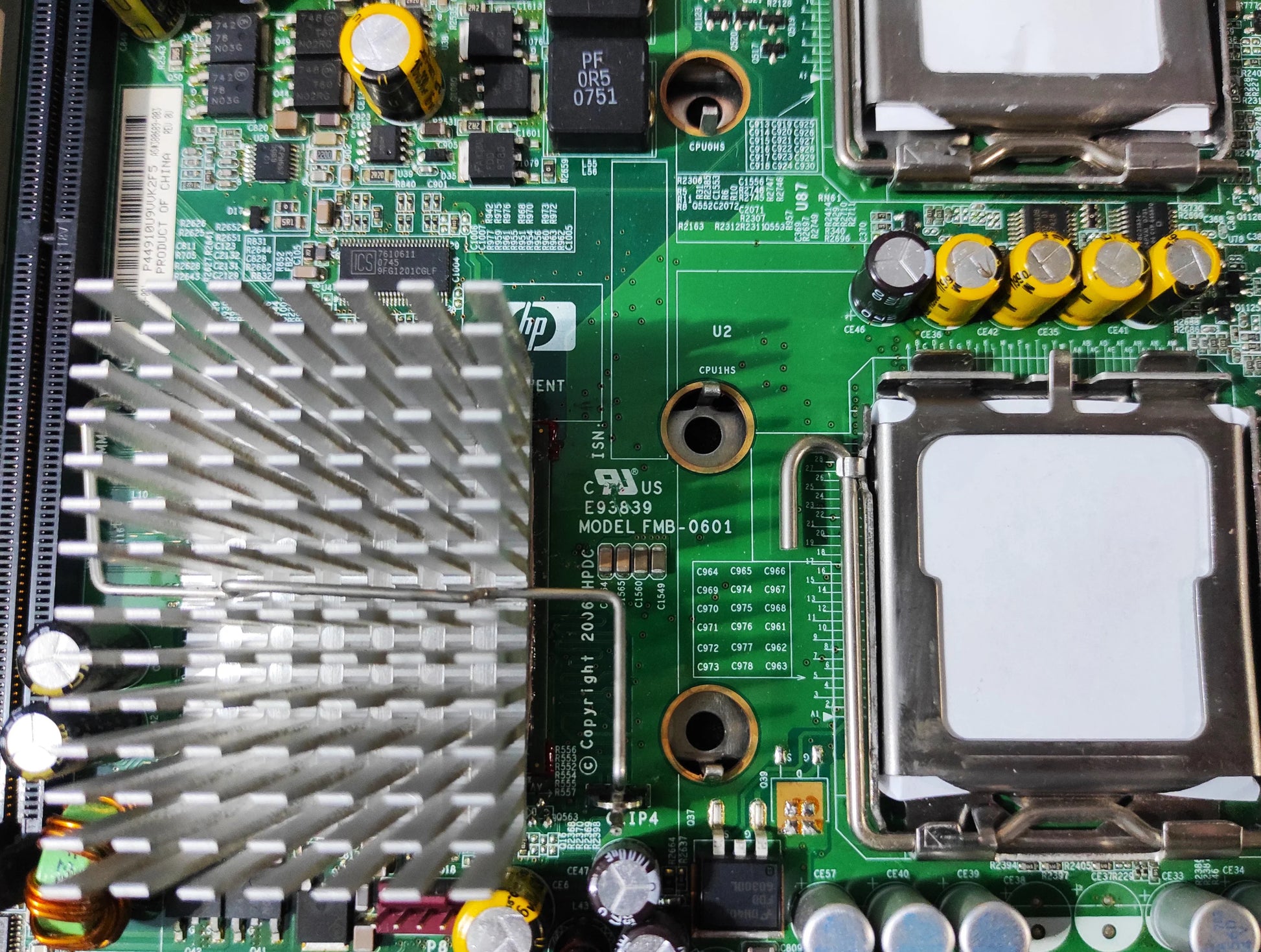

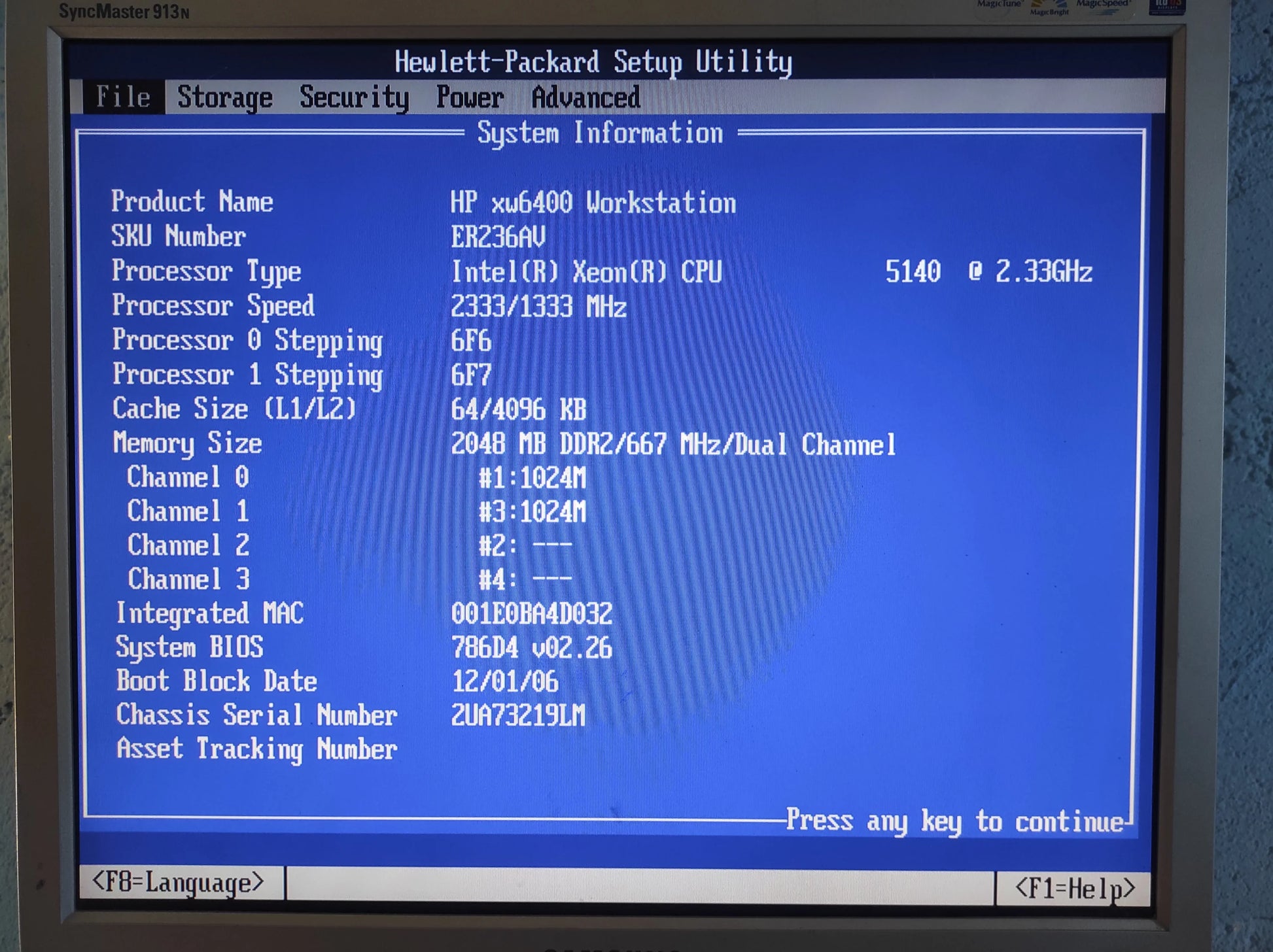

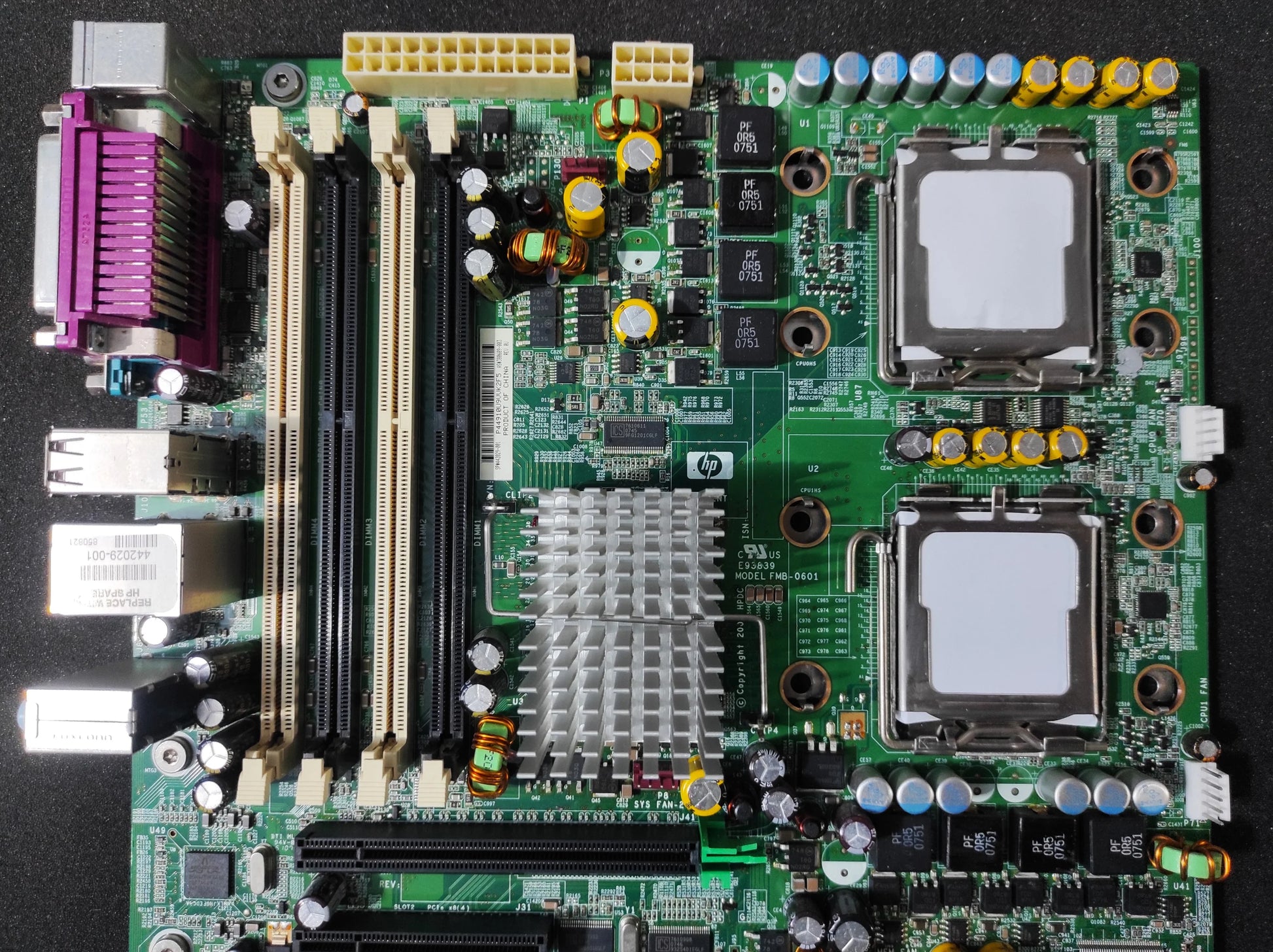

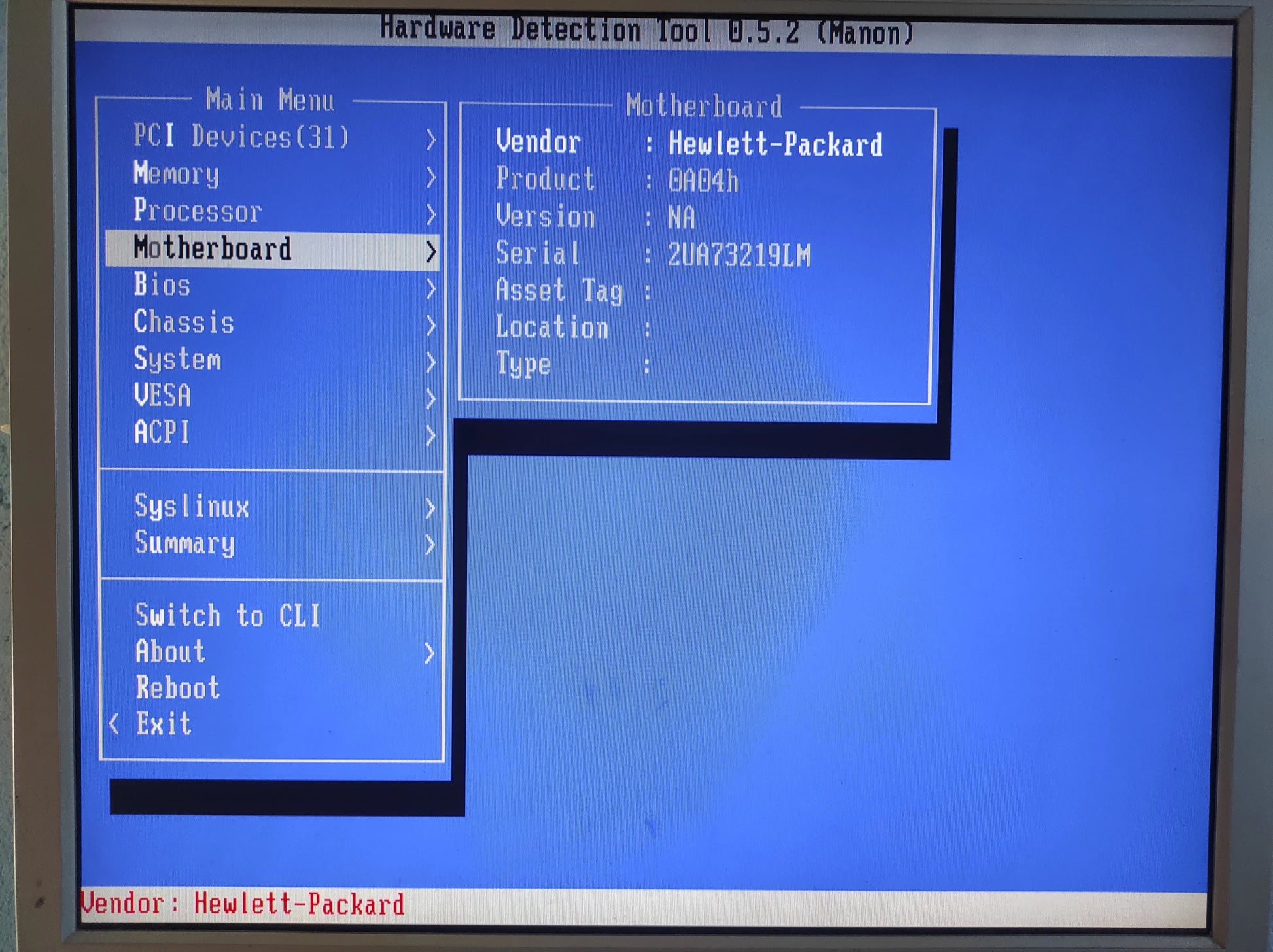

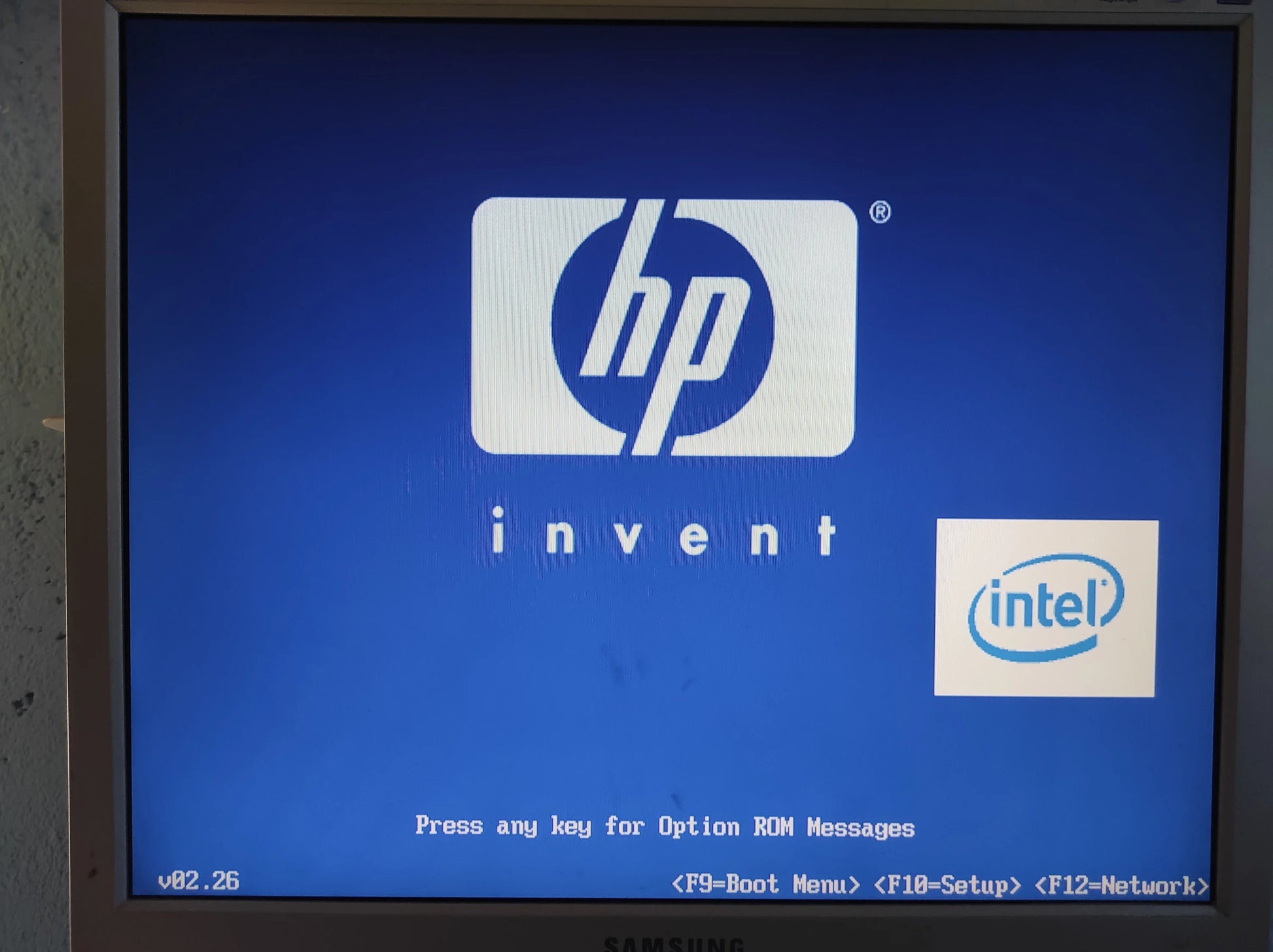

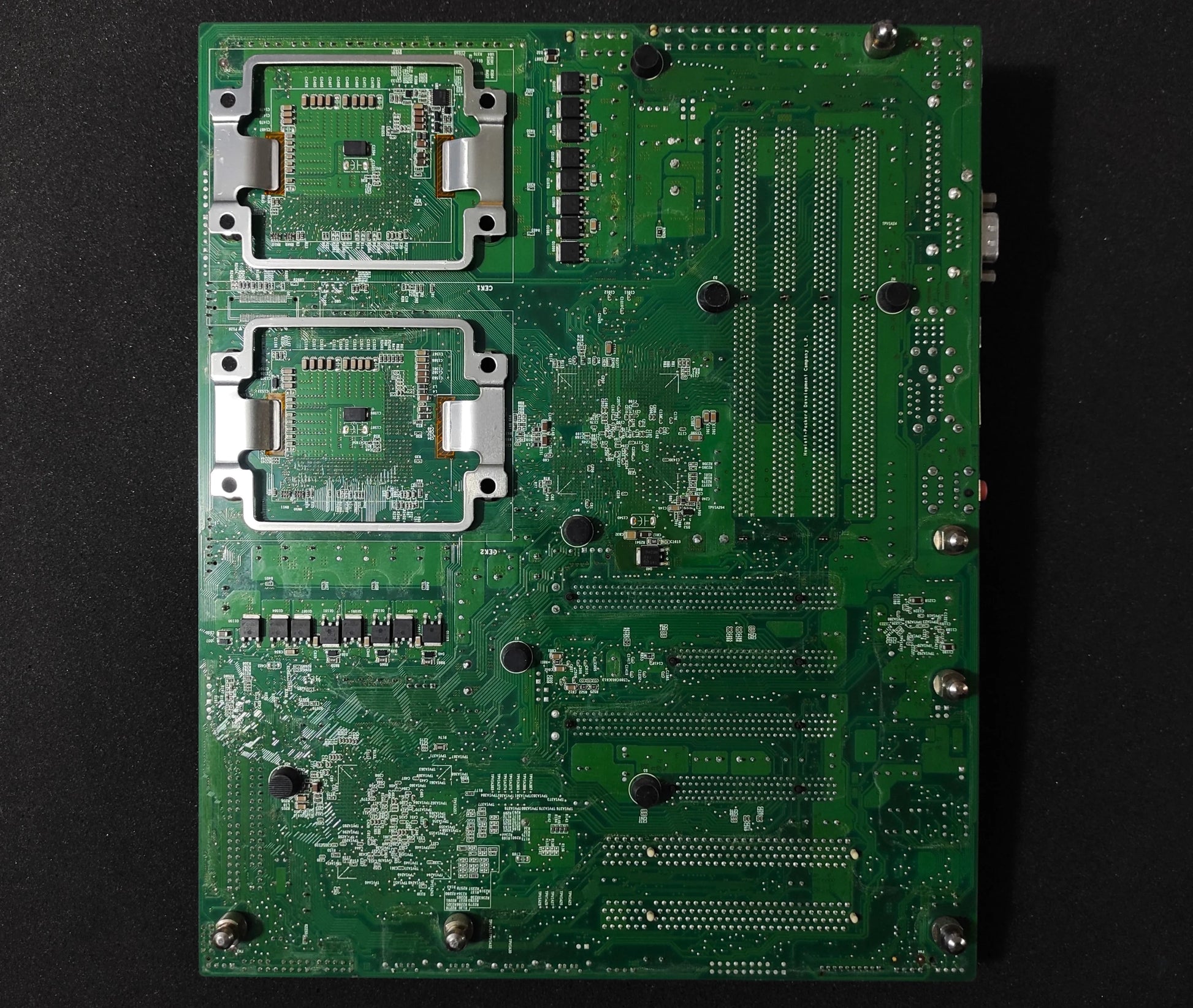

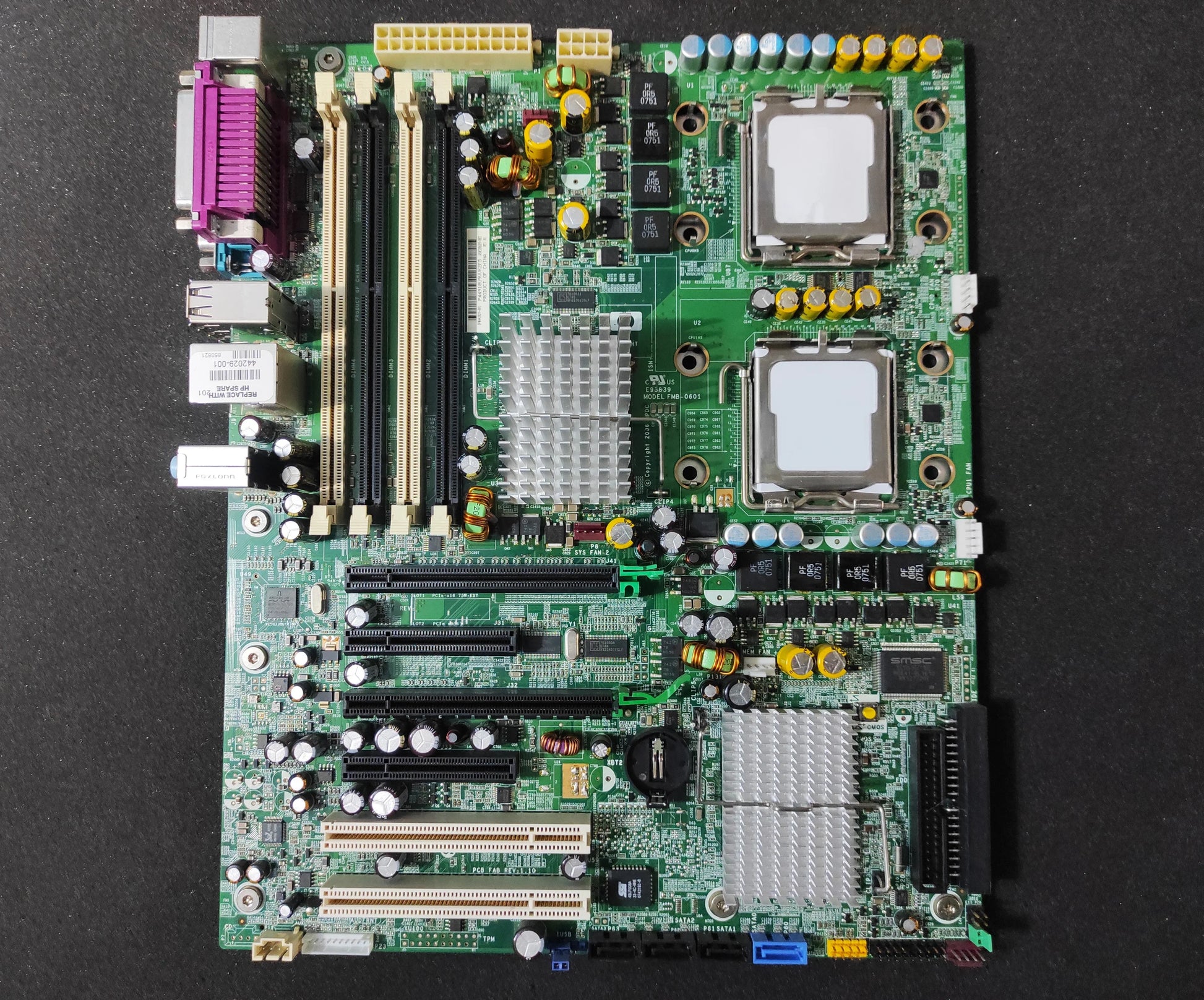

Used System Board, pulled out of a fully working XW6400 server and tested working! Check out the pics!

HP FMB‑0601 System Board / Motherboard – Specifications

Chipset:

  • Intel 5000X Workstation Chipset

CPU / Processor Support:

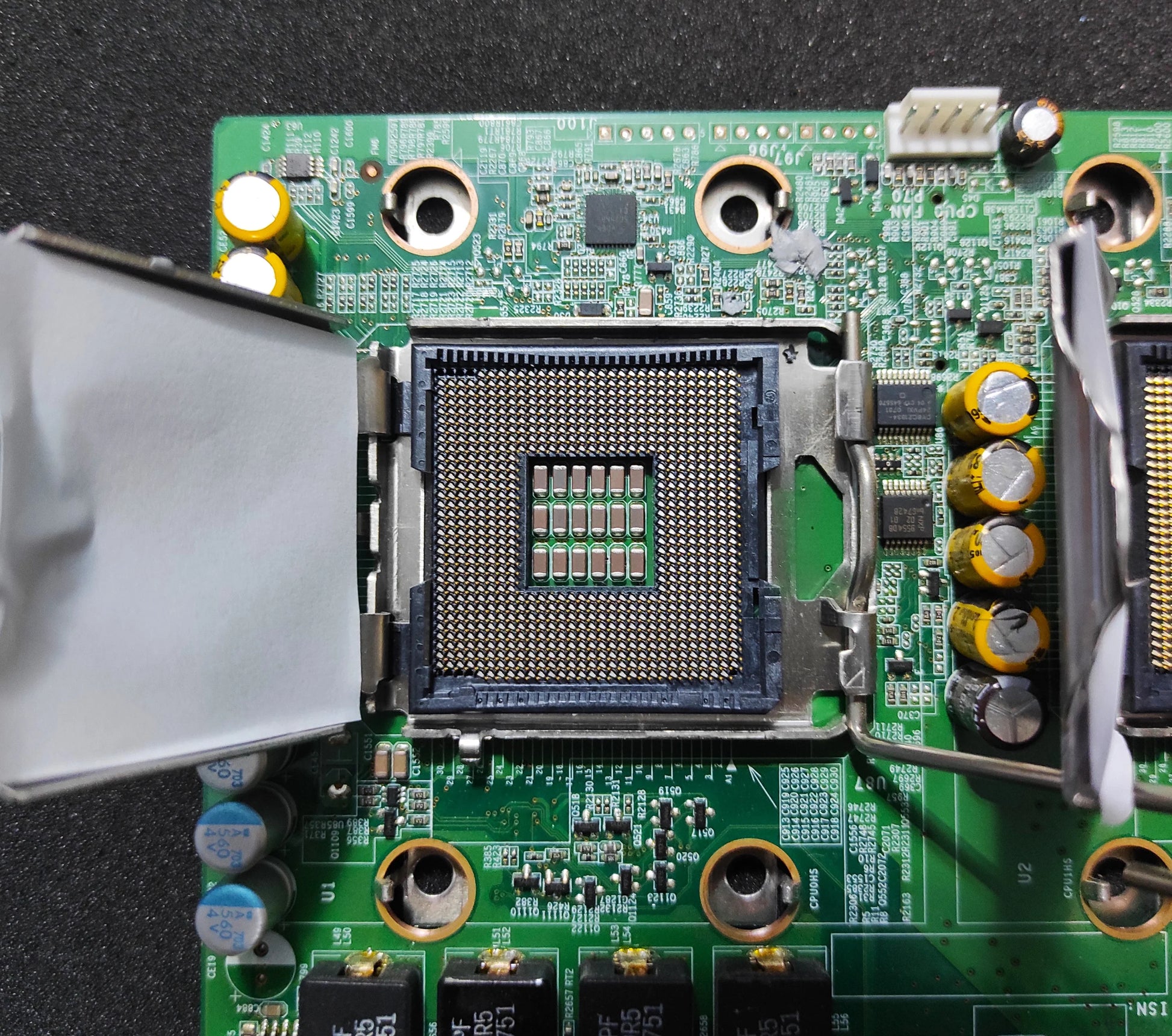

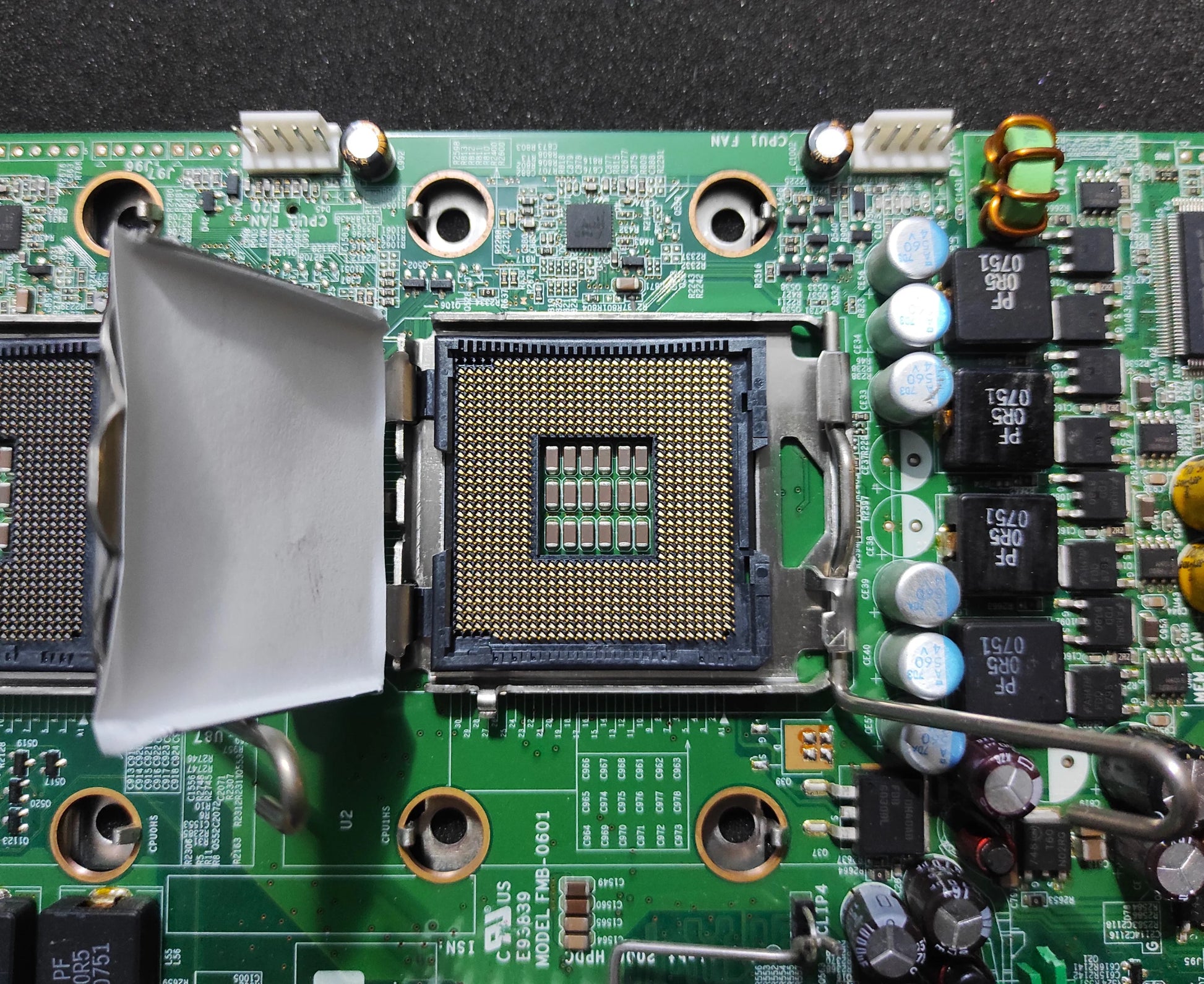

  • Dual LGA 771 sockets

  • Supports Dual‑Core and Quad‑Core Intel Xeon (5100 & 5300 series)

  • 64‑bit architecture (Intel EM64T)

  • Front-Side Bus (FSB): 1066 MHz / 1333 MHz

Memory:

  • 4 × DDR2 Fully Buffered ECC DIMM (FB‑DIMM) slots

  • Memory type: PC2‑5300F / DDR2‑667 MHz

  • Maximum supported RAM: 16 GB

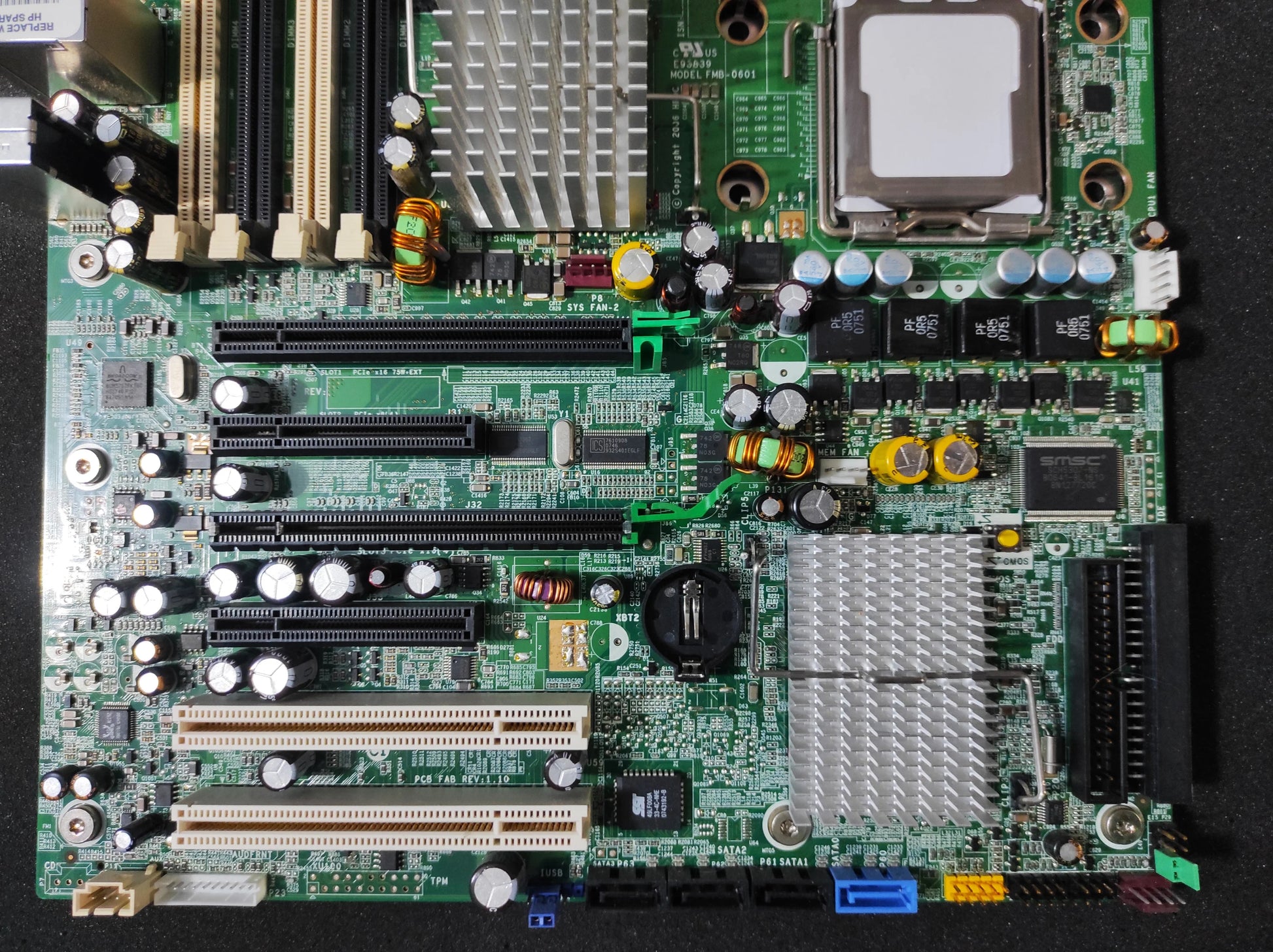

Expansion Slots:

  • 1 × PCI Express x16 (for GPU)

  • 3 × PCI Express (x8 / x16 mechanical)

  • 2 × legacy PCI slots

Storage / SATA:

  • Integrated quad-channel SATA 3.0 Gb/s controller

  • Supports RAID levels: 0, 1, 5, 10

  • Compatible with multiple internal drives (3.5" SATA)

Networking / Connectivity:

  • Integrated Gigabit Ethernet (Broadcom 5752 NIC)

  • Integrated High-Definition Audio

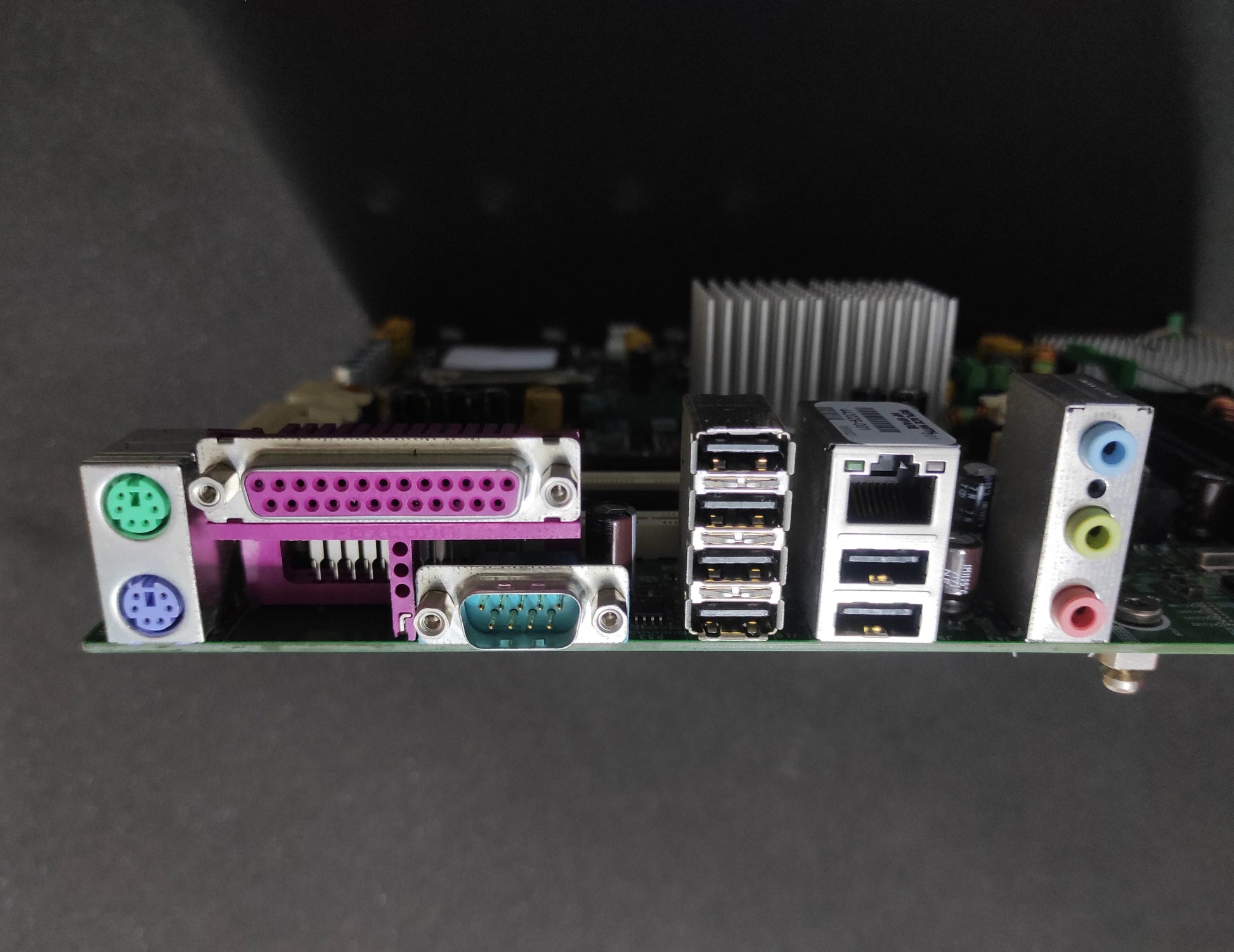

  • Rear I/O: multiple USB 2.0 ports, PS/2 keyboard & mouse, serial, parallel, audio in/out, Gigabit LAN

  • Internal headers: USB, front-panel, speaker, and other workstation controls

Front-Panel & Miscellaneous:

  • 2×9 front-panel header (2 missing pins)

  • Supports Power Switch, Reset Switch, Power & HDD LEDs, Speaker

  • Designed for mini-tower HP xw6400 chassis

Power Requirements:

  • Designed for HP 575 W workstation PSU with active PFC

Operating System Compatibility:

  • Windows XP / Vista Business (32 & 64-bit)

  • Compatible Linux distributions (e.g., Red Hat Enterprise Linux) with proper drivers

Form Factor:

  • Standard HP workstation board (~12" × 9.8")
